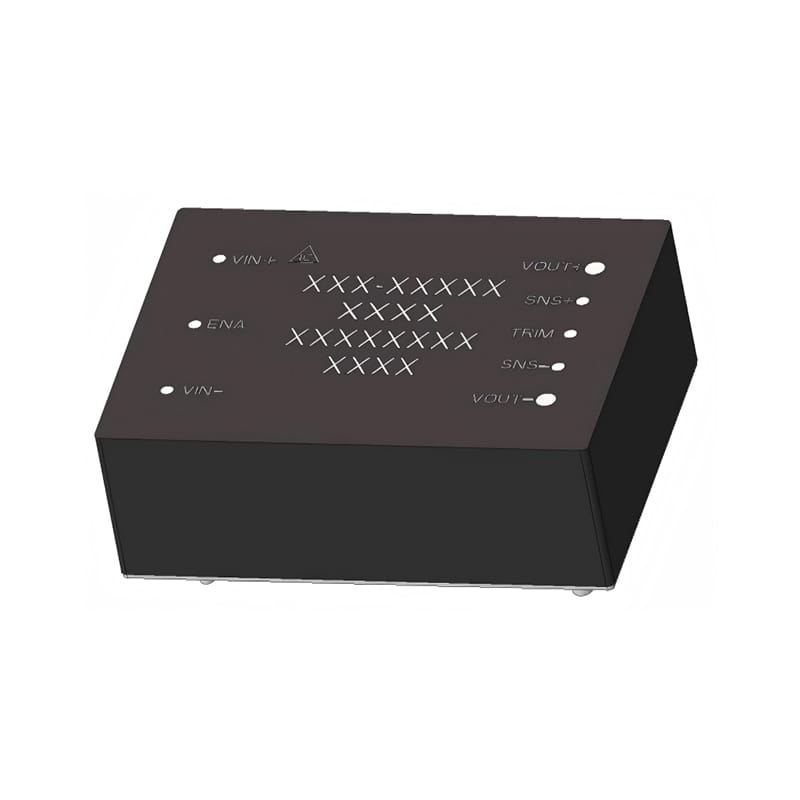

HSS-28/W24/W48 Series Wide Input Power Modules (1/16 Brick)

DC/DC Isolated Converter
Max Output Power: 100W
Input Undervoltage Protection (UVP)
Output Overvoltage, Overcurrent, Short-Circuit & Overtemperature Protection
Single Output
100% Domestically Sourced Internal Components
Operating Temperature (Tc): -55℃ to +105℃
Storage Temperature: -55℃ to +125℃
Compliant with GJB 10164-2021 General Specification for Microcircuit Modules

Product Selection Guide：

Part Number	Input Voltage (V)	Output Voltage (V)	Output Current (A)	Efficiency (%) Half Load/Full Load	Max Capacitive Load (μF)	Typical Ripple (mV)
HSS40-W24S3R3SNM	9~40	3.3	12.1	88/86	1000	50
HSS60-W24S05SNM	9~40	5	12	90/88	1000	60
HSS60-W24S06SNM	9~40	6	10	90/88	1000	60
HSS60-W24S09SNM*	9~40	9	6.67	90/88	1000	60
HSS60-W24S12SNM	9~40	12	5	90.5/89	1000	60
HSS60-W24S15SNM	9~40	15	4	90.5/90	1000	60
HSS60-W24S24SNM	9~40	24	2.5	90.5/90.5	680	120
HSS60-W24S28SNM	9~40	28	2.14	91/91	680	150
HSS60-W24S48SNM	9~40	48	1.25	88/90	470	200
HSS80-W24S05SNM*	9~40	5	16	89/87	1000	60
HSS80-W24S12SNMa	9~40	12	6.67	90/89	1000	60
HSS80-W24S15SNMa*	9~40	15	5.33	90/89	1000	60
HSS80-W24S24SNM	9~40	24	3.33	88.5/88	680	120
HSS80-W24S28SNM	9~40	28	2.86	90/89.5	680	150
HSS80-W24S48SNM*	9~40	48	1.67	87/89	470	200
HSS80-W48S05SNM*	18~75	5	16.00	89	2200	100
HSS80-W48S12SNM	18~75	12	6.67	91	1000	120
HSS80-W48S28SNM	18~75	28	2.86	91.5	1000	280
HSS100-28S05SNM	16~40	5	20.00	88/87	2200	120
HSS100-28S12SNM	16~40	12	8.34	91/89	1500	120
HSS100-28S15SNM	16~40	15	6.67	91/90	1500	120
HSS100-28S24SNM	16~40	24	4.17	91/90	1000	120
HSS100-28S28SNMa	16~40	28	3.57	91/90	1000	120
HSS100-28S36SNM*	16~40	36	2.78	91/90	470	200
HSS100-28S48SNM*	16~40	48	2.08	91/90	470	200

Notes:

For products with different screening temperature grades, please name and order according to the corresponding naming rules. For more details, please consult our sales or technical support team.
The electrical parameters and physical dimensions in this manual are for reference only. Please refer to the detailed specifications provided by our company for final parameters.
The ripple testing method refers to the typical application circuit.
For models with the suffix “a”, the power-on/off interval must be greater than 3s.
Models marked with an asterisk (*) are currently under development. Please contact our sales or technical support team for specific details.

Available in numerous types and models, with full customization services. Please feel free to contact us for more details.
