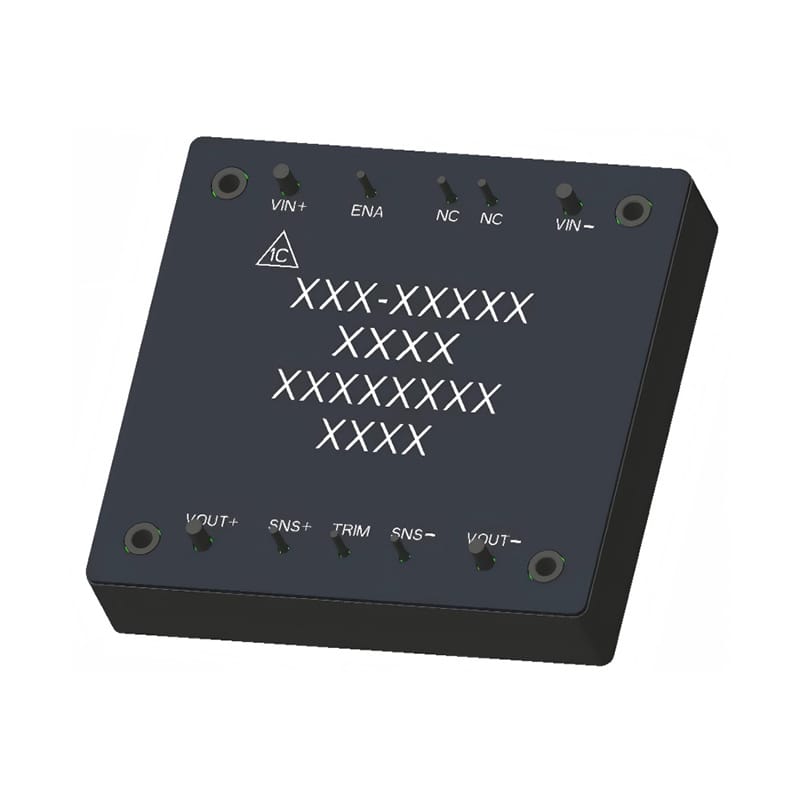

HSH-24/W24 Series Parallel Current Sharing Power Modules (1/2 Brick)

DC/DC Isolated Converter
Max Output Power: 800W
Input Undervoltage Protection (UVP)
Output Overvoltage, Overcurrent, Short-Circuit & Overtemperature Protection、Anti-reverse Current Protection
The HSH-24 series and HSH*B-W24 series feature internally integrated ideal diodes to prevent backfeeding.
The HSH*S-W24 series does not have internal backfeed protection; an external ideal diode is required when used in parallel.
100% Domestically Sourced Internal Components
Operating Temperature (Tc): -55℃ to +105℃
Storage Temperature: -55℃ to +125℃
Compliant with GJB 10164-2021 General Specification for Microcircuit Modules

Product Selection Guide：

Part Number	Input Voltage (V)	Output Voltage (V)	Output Current (A)	Efficiency (%) Half Load/Full Load	Max Capacitive Load (μF)	Typical Ripple (mV)
HSH400-24S05NNMa	18~36	5	80.0	92/91	10000	100
HSH600-24S12NNMa	18~36	12	50.0	92/91	8000	100
HSH600-24S24NNMa	18~36	24	25	92/91	5000	150
HSH600-24S28NNMa	18~36	28	21.5	92/91	5000	150
HSH400S-W24S05NNMb	9~40	5	80.0	92/91	30000	50
HSH800S-W24S12NNMb	9~40	12	66.6	95/94	20000	50
HSH800S-W24S28NNMb	9~40	28	28.5	95/94.5	7500	120
HSH800S-W24S48NNMb	9~40	48	16.7	94.5/93.5	4000	150
HSH800B-W24S28NNMa	9~40	28	28.5	95/94	7500	200

Notes:

For different package types or products with different screening temperature grades, please name and order according to the corresponding naming rules. For more details, please consult our sales or technical support team.
The electrical parameters and physical dimensions in this manual are for reference only. Please refer to the detailed specifications provided by our company for final parameters.
The ripple testing method refers to the typical application circuit.
“a”: The HSH-24 series and HSH*B-W24 series feature internally integrated ideal diodes to prevent backfeeding.
“b”: The HSH*S-W24 series does not have backfeed protection. When used as a standalone unit, the interval between repeated power-on and power-off cycles must be greater than 3 seconds. When multiple units are used in parallel, an external ideal diode is required.

Available in numerous types and models, with full customization services. Please feel free to contact us for more details.
