Specific specification parameters, support selection customization, please consult us!

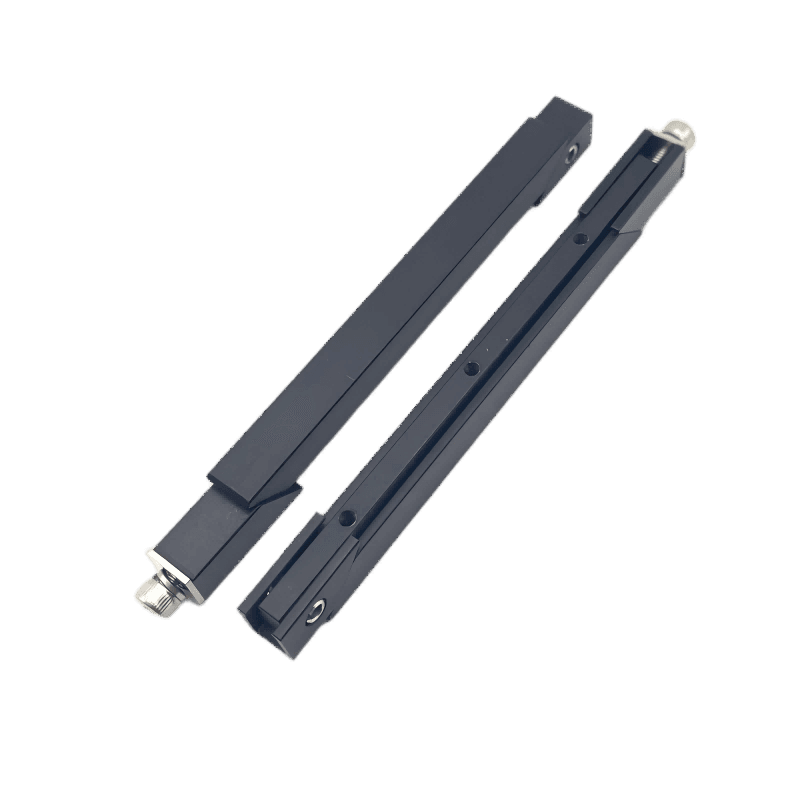

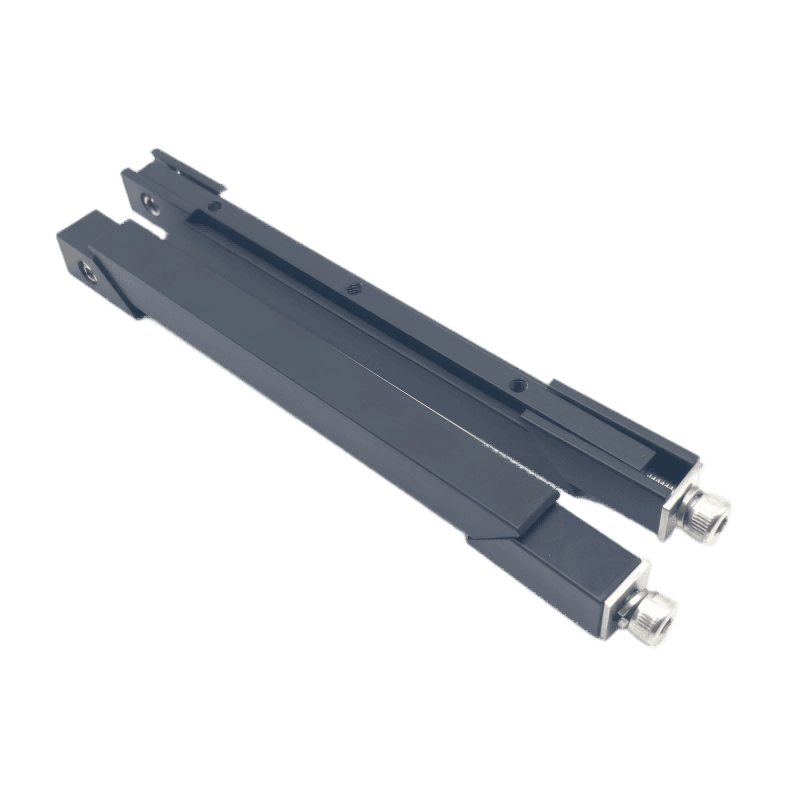

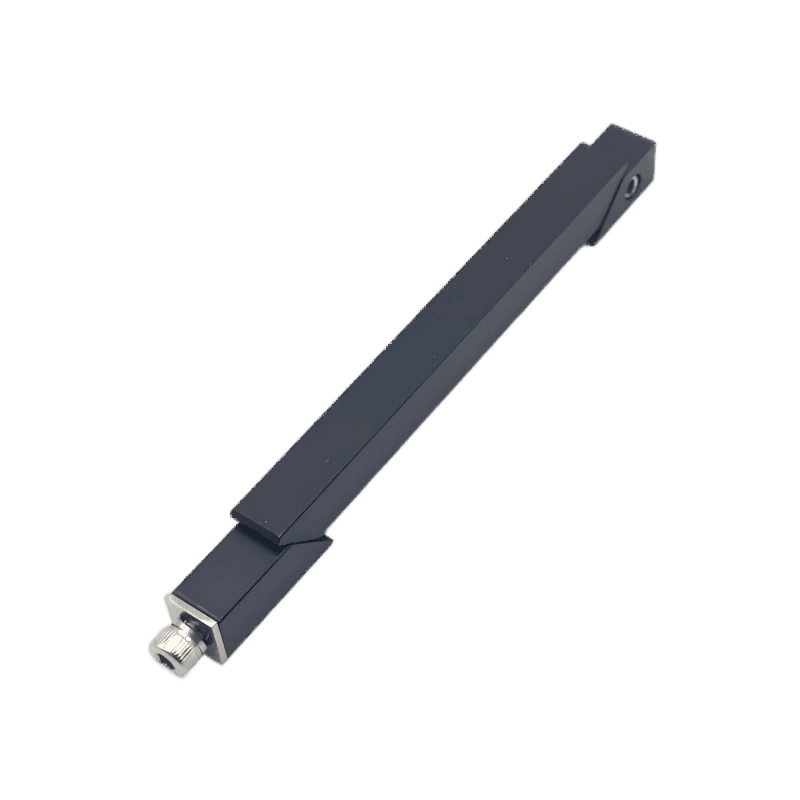

WLB series: three-stage locking strip
Locking of heavy modules and boards
Material:
Wedge: 6063-T6, Center axis: 6061-T6
Screws/washers: stainless steel SUS-304
Operating temperature: -55°C – 125°C
Surface treatment:
black anodized
natural anodization
color conductive oxidation

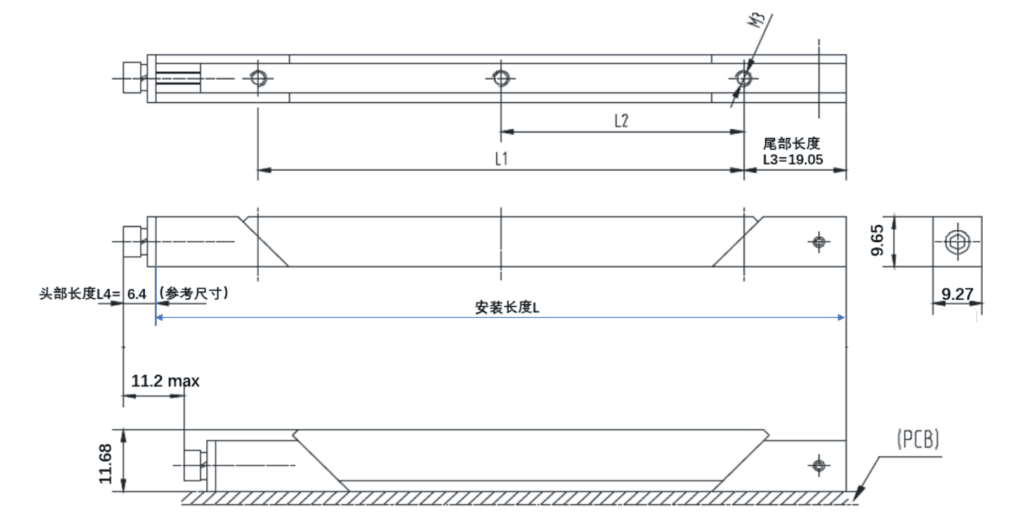

| Model | Total length (mm) | Installation length L (mm) | Length L1 (mm) | Length L2 (mm) | Tail length L3 (mm) | Head length L4 (mm) | Open hole | Installation aperture of | Surface treatment | Number of segments | Material/Processing |
| WLB-77-2-3-A-3 | 77.52 | 71.12 | 16.51 | 19.05 | 6.4 | 2 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling | |
| WLB-90-2-3-A-3 | 90.22 | 83.82 | 29.21 | 19.05 | 6.4 | 2 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling | |
| WLB-103-2-3-A-3 | 102.92 | 96.52 | 41.91 | 19.05 | 6.4 | 2 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling | |
| WLB-115-3-3-A-3 | 115.62 | 109.22 | 54.61 | 27.31 | 19.05 | 6.4 | 3 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLB-128-3-3-A-3 | 128.32 | 121.92 | 67.31 | 33.66 | 19.05 | 6.4 | 3 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLB-141-3-3-A-3 | 141.02 | 134.62 | 80.01 | 40.01 | 19.05 | 6.4 | 3 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLB-154-3-3-A-3 | 153.72 | 147.32 | 92.71 | 46.36 | 19.05 | 6.4 | 3 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLB-166-3-3-A-3 | 166.42 | 160.02 | 105.41 | 52.71 | 19.05 | 6.4 | 3 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLB-179-3-3-A-3 | 179.12 | 172.72 | 118.11 | 59.06 | 19.05 | 6.4 | 3 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLB-192-3-3-A-3 | 191.82 | 185.42 | 130.81 | 65.41 | 19.05 | 6.4 | 3 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLB-205-3-3-A-3 | 204.52 | 198.12 | 143.51 | 71.76 | 19.05 | 6.4 | 3 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLB-217-3-3-A-3 | 217.22 | 210.82 | 156.21 | 78.11 | 19.05 | 6.4 | 3 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLB-230-3-3-A-3 | 229.92 | 223.52 | 168.91 | 84.46 | 19.05 | 6.4 | 3 | M3 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
Driven by continuous R&D investment, we integrate advanced manufacturing and strict quality control to ensure reliable performance in every product.
With global distribution centers and multilingual support teams, we deliver rapid response and localized technical assistance for customers worldwide.
Our full-process service ensures smooth communication, on-time delivery, and prompt after-sales response, building long-term trust with every client.
Each product undergoes comprehensive reliability testing, including high/low temperature, vibration, and salt spray evaluation, ensuring durability in harsh environments.
