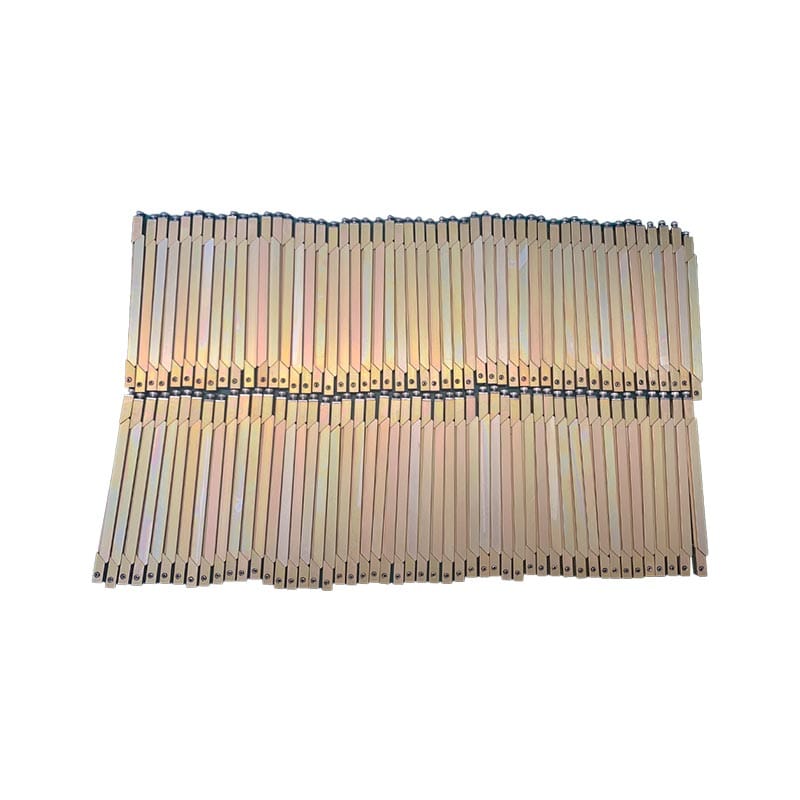

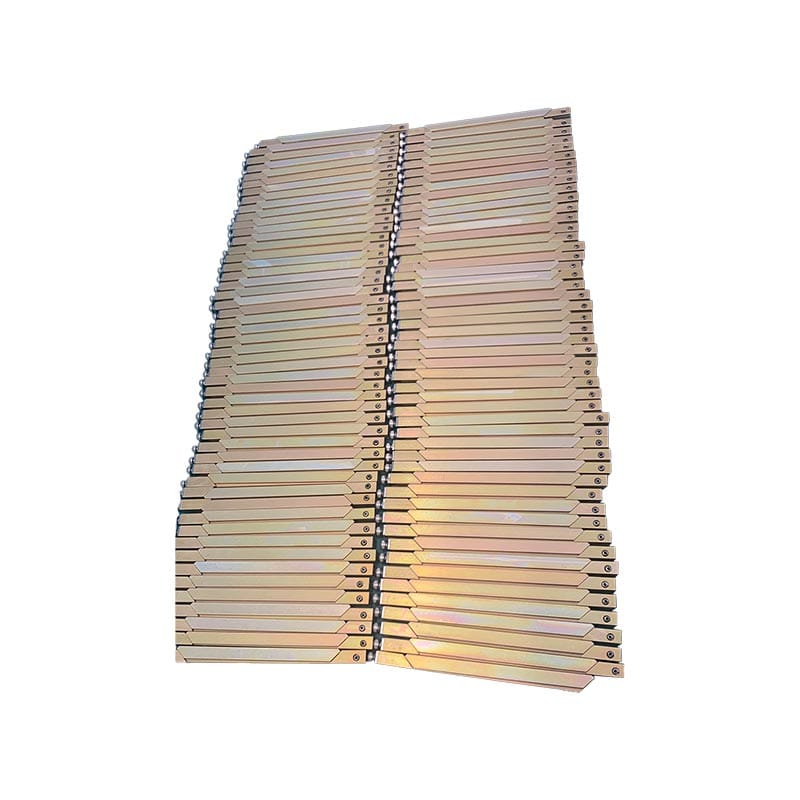

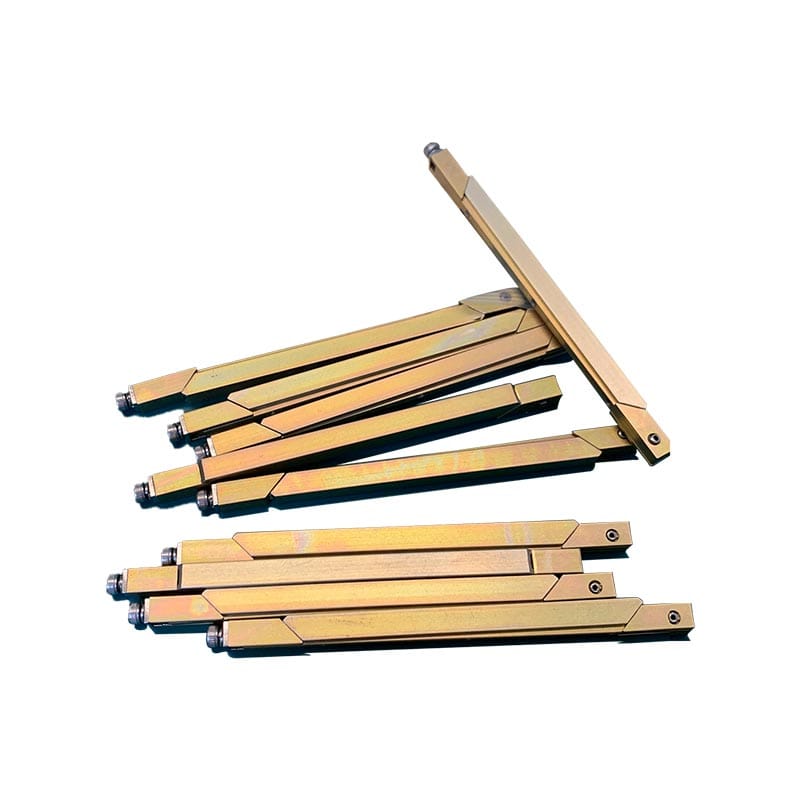

WLA-12532B-3 (Color Conductive Oxidation)
WLA series: three-stage locking strip
· Three-stage structure design, can realize all kinds of modules and board locking
· Anti-drop front beam block, anti-drop piece
· Anti-rotation center shaft, no card risk
· High thermal conductivity and shock resistance
· High reliability, fast and reliable locking, easy to install
· A variety of surface treatment options
· Various length forms, accept customization, replace imported products of the same type
Material:
Wedge: 6063-T6, Center shaft: 6061-T6, Screws/washers: Stainless steel SUS-304
Operating temperature: -55 ° C- 125°C
Surface treatment:
black anodized
natural anodization
color conductive oxidation
| Model | Total length (mm) | Installation length L (mm) | Length L1 (mm) | Length L2 (mm) | Tail length L3 (mm) | Head length L4 (mm) | Open hole | Installation aperture of | Surface treatment | Number of segments | Material/Processing |
| WLA-63-2-2-A-3 | 63.12 | 58.42 | 10.16 | 20.32 | 4.7 | 2 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling | |
| WLA-75-2-2-A-3 | 75.82 | 71.12 | 22.86 | 20.32 | 4.7 | 2 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling | |
| WLA-88-2-2-A-3 | 88.52 | 83.82 | 35.56 | 20.32 | 4.7 | 2 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling | |
| WLA-101-2-2-A-3 | 101.22 | 96.52 | 48.26 | 20.32 | 4.7 | 2 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling | |
| WLA-114-3-2-A-3 | 113.92 | 109.22 | 60.96 | 30.48 | 20.32 | 4.7 | 3 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLA-125-3-2-A-3 | 126.62 | 121.92 | 73.66 | 36.83 | 20.32 | 4.7 | 3 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLA-139-3-2-A-3 | 139.32 | 134.62 | 86.36 | 43.18 | 20.32 | 4.7 | 3 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLA-152-3-2-A-3 | 152.02 | 147.32 | 99.06 | 49.53 | 20.32 | 4.7 | 3 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLA-165-3-2-A-3 | 164.72 | 160.02 | 111.76 | 55.88 | 20.32 | 4.7 | 3 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLA-177-3-2-A-3 | 177.42 | 172.72 | 124.46 | 62.23 | 20.32 | 4.7 | 3 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLA-190-3-2-A-3 | 190.12 | 185.42 | 137.16 | 68.58 | 20.32 | 4.7 | 3 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLA-203-3-2-A-3 | 202.82 | 198.12 | 149.86 | 74.93 | 20.32 | 4.7 | 3 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLA-215-3-2-A-3 | 215.52 | 210.82 | 162.56 | 81.28 | 20.32 | 4.7 | 3 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
| WLA-228-3-2-A-3 | 228.22 | 223.52 | 175.26 | 87.63 | 20.32 | 4.7 | 3 | M2 | Black anodized | 3 | 6061/6063 aluminum profiles/milling |
Compliance with standards:
Salt spray: comply with GJB150.11A-2009 Part 11: Salt spray test, test time: 96h
Damp heat: Comply with GJB150.9A-2009 Part 9: Damp heat test, temperature: 30-60°C, humidity 95%, 10 cycles (24h per cycle)
Mold: Comply with GJB150.10A-2009 Part 10: Mold test, test time: 28d
Vibration: Comply with GJB150.16A-2009, Part 16: Vibration Test, Low Frequency 0.064g2/Hz High Frequency 0.112g2/Hz
Impact: Comply with GJB150.18A-2009 Part 18: Impact test, 40g, llms, 6 times in each direction
