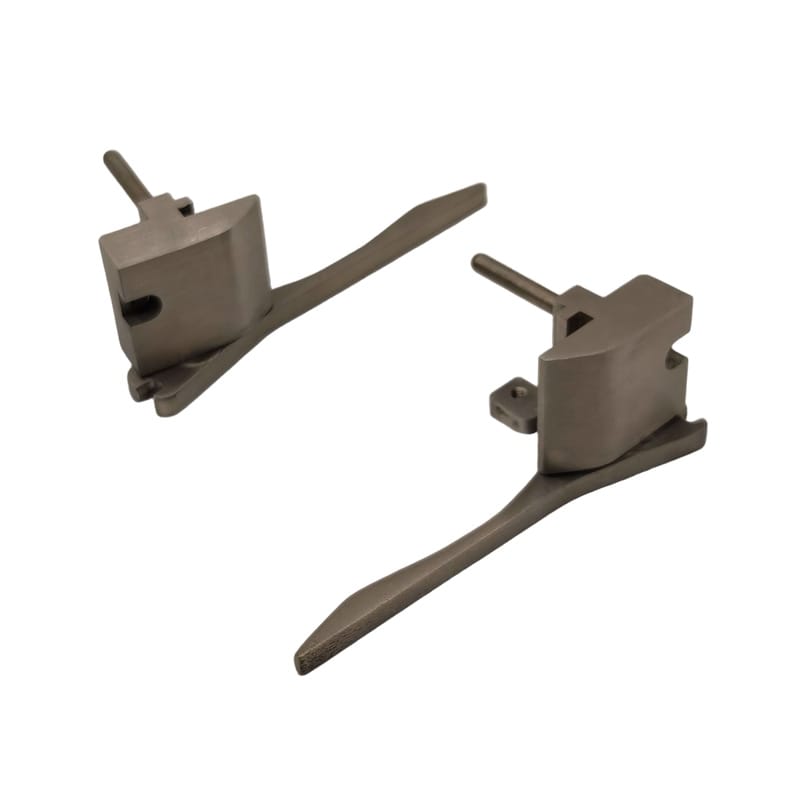

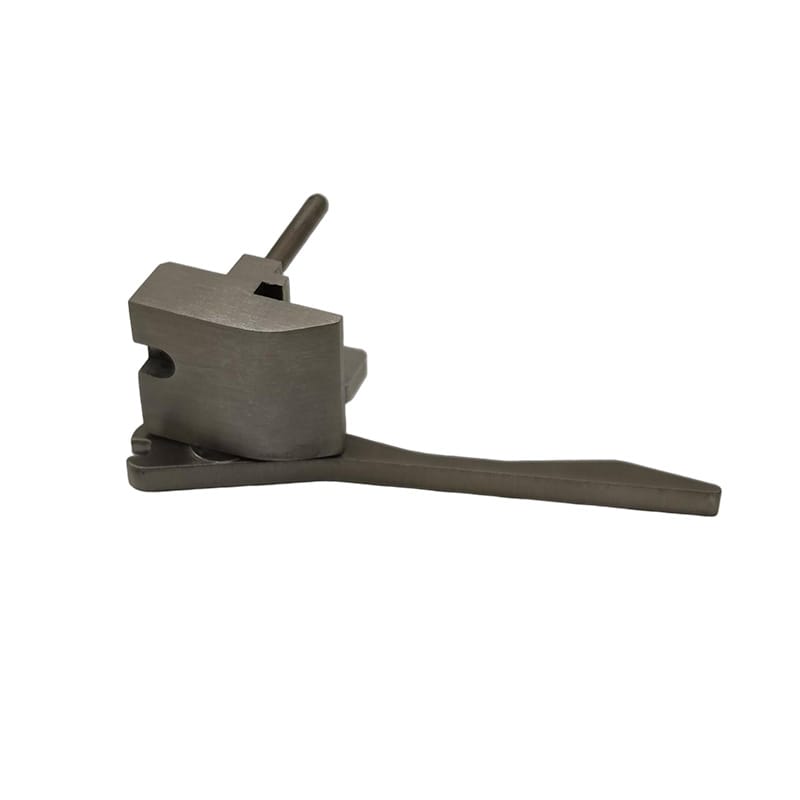

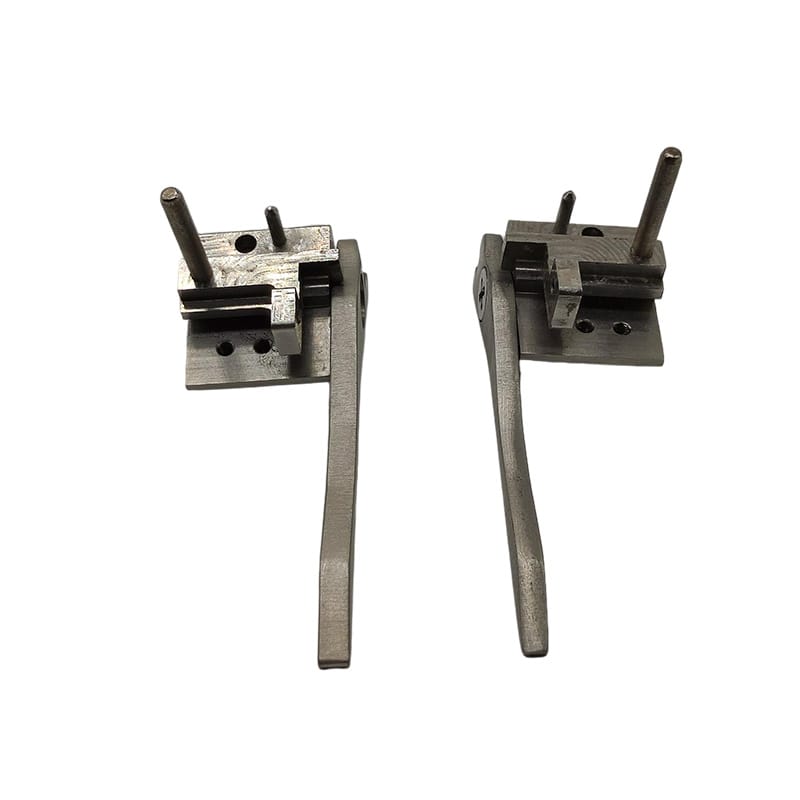

VPX-S-IIIstainless Steel Puller 5HP

Stainless Steel (military)
Support VPX high-density connector ultra-large insertion force applications, specifically designed for military VPX applications
· Power insertion/extraction function, each handle provides a insertion force of not less than 800N
· Unilateral long handle, does not occupy the panel space, can open the hole area is larger;
· The handle fits the panel under working condition, greatly saving the front operation space of the panel.
·The handle stroke is opened and closed back and forth with the pivot pin as the center, which is more labor-saving; moreover, the operatinghandle does not need to occupy excess space at the top and bottom of the board, especially suitable forrecessed cages or applications with narrow space.
· The handle has damping design, can freely stop at any angle, will notshake because of
· With electrostatic discharge pin, it can also be used for precise positioning of card
· 316L stainless steel is used, which has extremely strong corrosionresistance.
316L stainless steel, brushed finish

Scope of supply:
Handle, mounting fixture (handle to panel set screw, handle to beam set screw)

Remarks:
To be used in conjunction with beams adapted to VPX structural specifications; suitable forpanel widths of 5

VPX-S-IIIPanel Assembly
Support VPX high density connector super mating force applications

Material:
U-shaped panel: extruded aluminum profile, chromate passivationpower handle:316L stainless steel

Scope of supply:
6U 5HP VPX Module Panel Kit includes:
1x6U5HP Panel,2 xVPX-S-III Pullout Assistants,1 xEMC Shield Spring,1 x Fixed Mounting Kit

6 U10 HP Power Panel Kit includes:
1 x6U10HP Panel,2 xVPX-S-III Pullout Aids,1 xEMC Shield Reed, 1 x Fixed Mount
