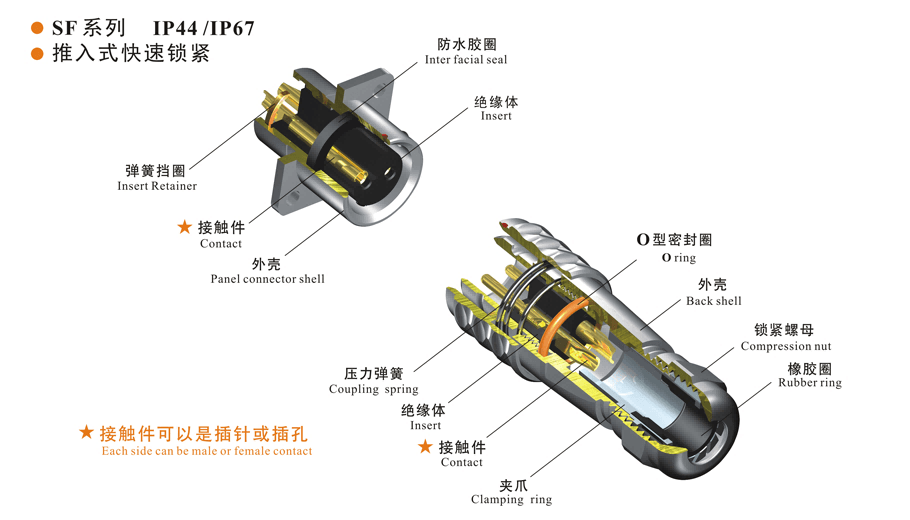

Plug-in mode: push-in quick locking
Case material: copper chrome plating
Insulator: thermoplastic PPS high temperature resistance 260℃
Contact material: copper plating
Connection mode: welding:SF6, SF8, SFIO, SFI2, SFI6, SF20
Crimp:SFI6, SF20
Screw crimping:SF20(φ2.5mm pin)
Cable diameter: SF6::2-3mm,I:3-4mm(not standard)
SF8:1:3-4mm,I:4-5mm(not standard)
SF10::3-4mm,Il:4-6.5mm(not standard)
SF12:1:4-6.5mm(not standard),Il:5-8mm
SF16:1:5-8mm(not standard),I:8-12mm
SF20:1:5-9mm,I:8- 12mm (not standard)
Protection class: IP67
Number of connections: 500
Temperature range: -40℃~+85℃
Insulation resistance: 2000Ω
Driven by continuous R&D investment, we integrate advanced manufacturing and strict quality control to ensure reliable performance in every product.
With global distribution centers and multilingual support teams, we deliver rapid response and localized technical assistance for customers worldwide.
Our full-process service ensures smooth communication, on-time delivery, and prompt after-sales response, building long-term trust with every client.
Each product undergoes comprehensive reliability testing, including high/low temperature, vibration, and salt spray evaluation, ensuring durability in harsh environments.
