100Base GBIC BIDI Transcevers are designed forthe applications of FAST Ethernet. OC-3/STM-1 is a network line with transmission speeds of up to155.52 Mbit/s (payload: 148.608 Mbit/s; overhead: 6.912 Mbit/sincluding path overhead) using fiber optics.
Description:
100Base GBIC BIDI Transcevers are designed forthe applications of FAST Ethernet. OC-3/STM-1 is a network line with transmission speeds of up to155.52 Mbit/s (payload: 148.608 Mbit/s; overhead: 6.912 Mbit/sincluding path overhead) using fiber optics. Depending onthe system OC-3 is also knownasSTS-3(electrical level) and STM-1(SDH) These modules are also used for Fast Ethernet application Single mode fiber optical transceivers features1x9 Pin Package.
Features:
· Single+3.3Vor+5V Power Supply, LVPECL/PECL/TTLData Interface, DC Coupling Fully Compliant with ITU-T G 957, G958 Specifi-cations,
Eye Safety, MeetLaser Class 1, Compliant with IEC 60825-1,Compliant with Telcordia (Bellcore)
· GR-468-CORE
· Working distance from0.1km to 120km max With SC, FC,ST fiber connection interface
Application：
· SONET OC-3/SDH STM-1
· Fast Ethernet Other
· Optical Links
Product performance indicators：
| Part No | Data rate | Wavelength(nm) | Fiber Type | Source | Reach(km) | Connector |
| GMK-22802M | 155Mb/s | 850 | MM | VSCEL | 2 | FC/SC/ST |
| GMK-22802M-3 | 155Mb/s | 850 | MM | VSCEL | 2 | FC/SC/ST |
| GMK-22302M | 155Mb/s | 1330 | MM | FP | 2 | FC/SC/ST |
| GMK-22302M-3 | 155Mb/s | 1330 | MM | FP | 2 | FC/SC/ST |

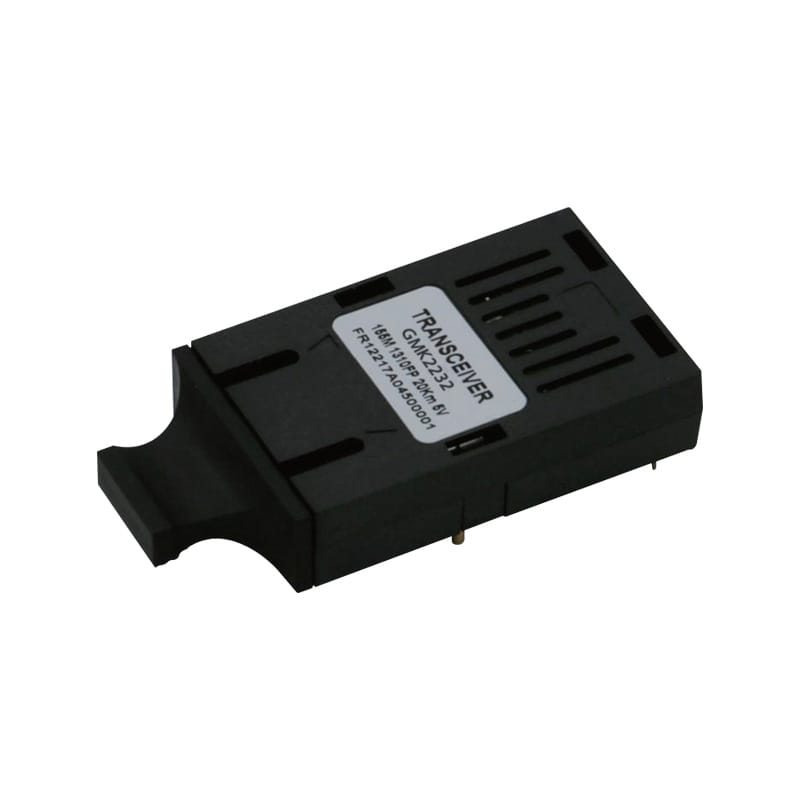

| GMK-2232 | 155Mb/s | 1330 | SM | FP | 20 | FC/SC/ST |
| GMK-2232-3 | 155Mb/s | 1330 | SM | FP | 20 | FC/SC/ST |
| GMK-2234 | 155Mb/s | 1330 | SM | FP | 40 | FC/SC/ST |
| GMK-2234-3 | 155Mb/s | 1330 | SM | FP | 40 | FC/SC/ST |
| GMK-2236 | 155Mb/s | 1330 | SM | FP | 60 | FC/SC/ST |
| GMK-2236-3 | 155Mb/s | 1330 | SM | FP | 60 | FC/SC/ST |
| GMK-225D8 | 155Mb/s | 1550 | SM | FPB | 80 | FC/SC/ST |
| GMK-225D8-3 | 155Mb/s | 1550 | SM | FPB | 80 | FC/SC/ST |
