This connector is designed for superior performance in a wide range of applications, including computer systems, data acquisition systems, communication systems, control systems navigation systems and instrumentation systems. It is a lightweight, cost-effective, easy-to-use solution with excellent electrical and mechanical properties.
Mil-C-83513miniature Electrical Connector J30j-9tjs Rectangular Electrical Connector
Specifications:
| MILspec：MIL-C-83513 | Housing material; aluminum alloy/stainless steel |
| Gender:Socket | Contact material: copper alloy |
| Mating Cycles:500 | Operating current: 3A |
| Connector type: miniature electrical connector | Voltage rating: 500V |
| Highlights:MIL-C-83513 Micro Electrical Connector | |
| Highlights: RectangularMIL-C-83513 Micro Electrical Connector | |
| Highlight: Female rectangularMIL-C-83513 | |
Payment and Delivery Terms:
| Packaging Details: Standard Export Packaging | Delivery time:1-4 weeks |
| Payment method: | Supply capacity: 100,000 |
Product Description:
Connector Solution Rectangular connector accordingto MIL-DTL-83513J30J-9TJSSocket

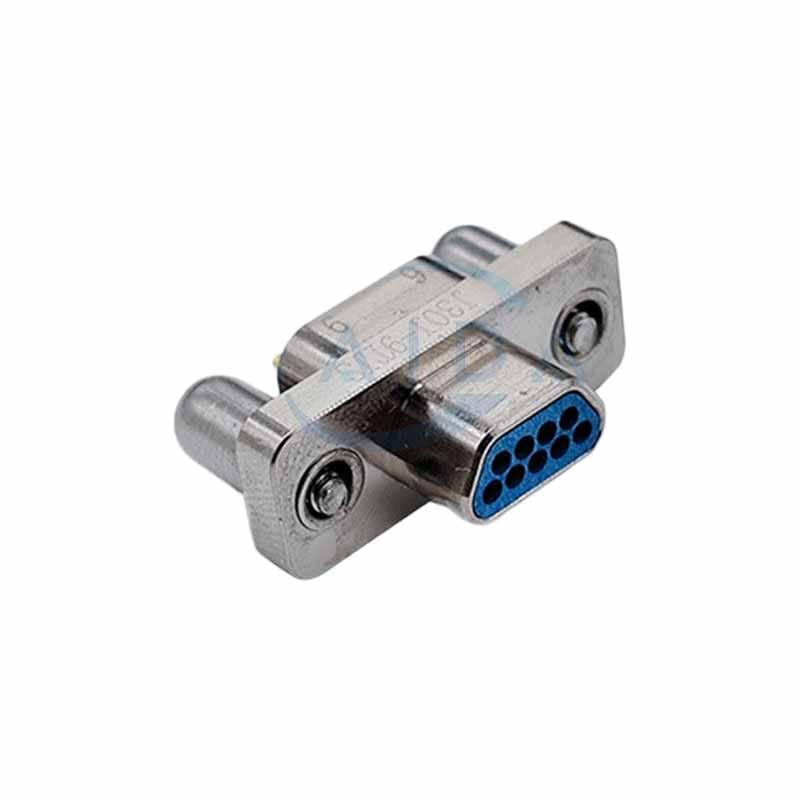

Part Number:J30J-9TJS
MIL-DTL-83513miniatureDconnector is a female socket for electrical interconnection applications, meeting the stringent requirements of military and aerospace environments, it is a reliable connector, gold plated nickel plated contacts,500Vvoltage rating, 500 mating cycles, part number:J30J-9TJS
This connector is designed for superior performance in a wide range of applications, including computer systems, data acquisition systems, communication systems, control systems navigation systems and instrumentation systems. It is a lightweight, cost-effective, easy-to-use solution with excellent electrical and mechanical properties. The connector has a robust construction, high vibration and shock resistance, and can withstand extreme temperatures, humidity, and harsh environments at high altitudes.
The MIL-C-83513connector offers excellent reliability and durability performance, making it the ideal solution for reliability applications. It is also ROHS compliant and certified to meet stringent quality standards, which means that the connector is designed to provide reliable and secure connections for a wide range of applications.
Features:
Product Name: MIL-C-83513Connector
Product Specification: MIL-C-83513
Part Number: J30J-9TJS
Type: Socket
Operating Temperature: -55 ℃–+125 ℃
Technical Parameters:
| Product working temperature: -55℃~125℃ | Acceleration: frequency 10~2000Hz acceleration |
| Rated working current: 5A | Mechanical life: 500 times |
| Insulation resistance: normal temperature ≥5000MQ-near-end crosstalk:100ps near-end crosstalk time is not less than 30dB | Characteristic impedance: 100±15Ω |
| Withstand voltage: 800V(normal temperature) | Salt spray: 96 hours |
| Vibration: Frequency 10~2000Hz Acceleration 196m/s2-Impact: Acceleration 735m/s2 | Transmission characteristics: 1.65Gbps transmission rate
|
| Contact resistance: ≤20mΩ | Impact: acceleration 735m/s2 |
Applications:
J30J-9TJSconnectors conform to MIL-DTL-83513 standard and are ideal for many industrial applications. It is designed to withstand harsh environmental conditions and operates over a temperature range of-55 to +125°C. due to its house material, aluminum alloy, and coupling nut, that receptacle connector has a high degree of durability and reliability.
J30J-9TJS connectors are suitable for a variety of applications such as aerospace, military and industrial systems.
The connector is easy to install and provides excellent signal performance, making it a cost-effective solution for any application that requires a reliable and secure connection.
