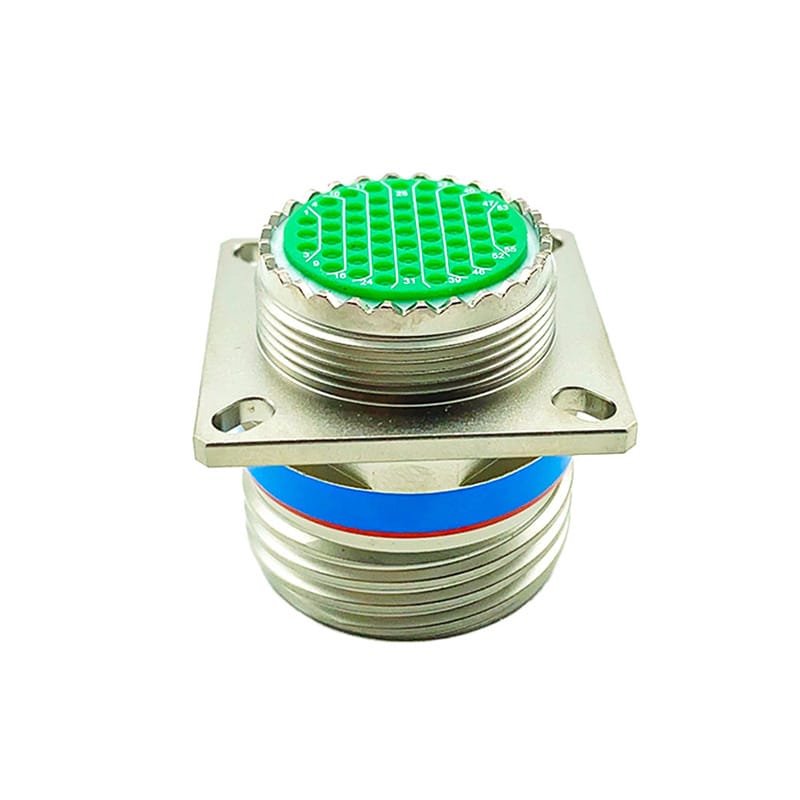

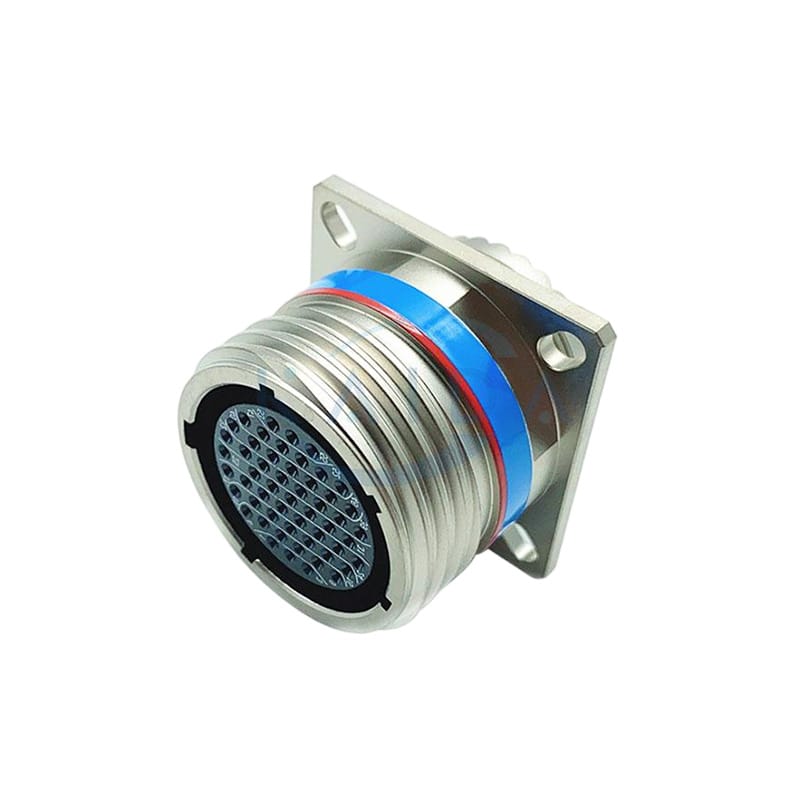

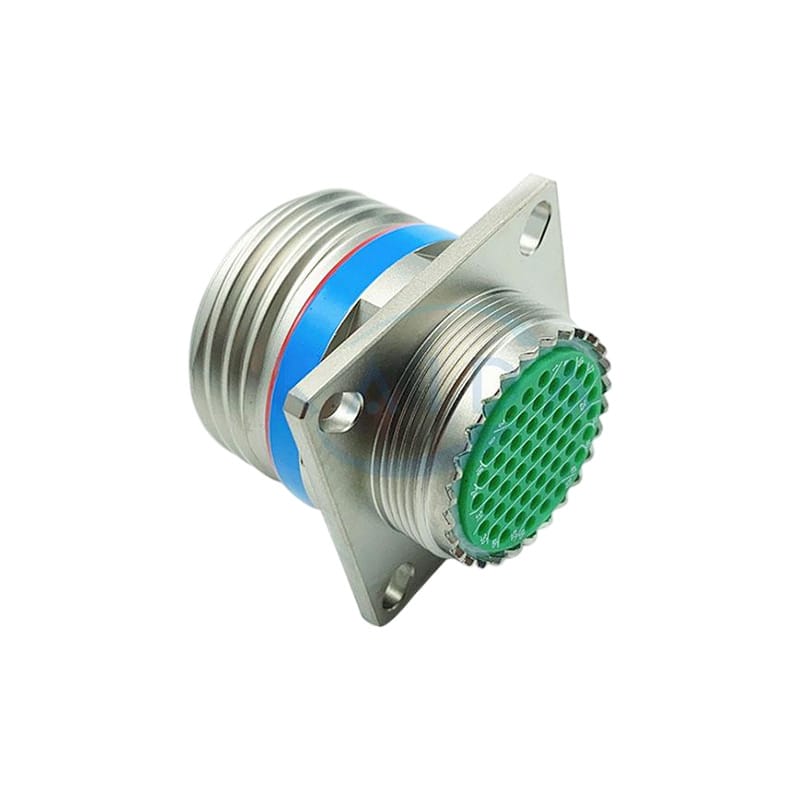

MIL-DTL-D38999Series 3 Standard, D38999 20FE35SN Three-thread quick connection with anti-loose mechanism. Small size, light weight, high contact density, and with electromagnetic shielding function, contact can be removed, pin anti-oblique insertion.
Mil-Dtl-38999 Series 55 Socket Nickel-Plated Shell D38999 Series 3
| MILspec：MIL-DTL-D38999 | Shell material; aluminum alloy/stainless steel/titanium alloy/composite materials, etc. |
| Gender:Socket | Contact material: copper alloy plating |
| Mating Cycles:Greater than 500 | Operating current: 5V |
| Connector type: circular electrical connector | Salt fog;48/96 hours |
| Highlights:MIL-DTL-D38999 round electrical connector aviation plug | |
| Highlights:MIL-DTL-D38999 Threaded Quick Connect Electrical Connector | |
| Highlights:MIL-DTL-D38999 Small size, light weight, high contact density | |
Payment and Delivery Terms:
| Packaging Details: Standard Export Packaging | Delivery time:1-4 weeks |
| Payment method: | Supply capacity: 100,000 |
Product Description:
MIL-DTL-D38999Series 3 Standard, D38999 20FE35SN Three-thread quick connection with anti-loose mechanism. Small size, light weight, high contact density, and with electromagnetic shielding function, contact can be removed, pin anti-oblique insertion.
It has high strength vibration characteristics under high temperature, suitable for use in bad sand and wet occasions. 12#16#20#contact specifications hole position can be assembled fiber optic accessories, 12#10#8#contact specifications hole position can be assembled coaxial, shielding contacts with stainless steel shell, titanium alloy shell, aluminum alloy shell, and a variety of coatings.
The product is used for circuit signal connection, product application fields include UAV, warship, aerospace, radar, oil, natural gas oil, military and civilian vehicles, submarines, aircraft, automation manufacturing, wind power generation, robots, medical equipment and other industries, with high anti-vibration and anti-impact ability, can withstand extreme high temperature, humidity and high altitude harsh environment.
The MIL-DTL-D38999connector offers excellent reliability durability performance and is the ideal solution for reliability applications. Complying with stringent quality standards, this connector finger provides reliable and secure connections for a wide range of applications.
Features:
Product Name: D38999 20FE35SN
MIL-DTL-D38999Aerial Connector Product Specification: MIL-DTL-D38999
Part Number: D38999 20FE35SN Type: Socket Operating Temperature: -65 ℃—-200 ℃
Technical Parameters:
| Product working temperature: -60℃~200℃ | Acceleration: frequency 10~2000Hz acceleration |
| Rated operating current: 275A | Mechanical life: more than 500 times |
| Insulation resistance: ≥5000MQ | Damp heat: perMIL-DTL-D38999: 24 hours 10 cycles |
| Liquid resistance: resistant to a variety of fuels, coolants, solvents | Salt fog: 48/96 hours |
| Vibration: frequency 10~2000Hz acceleration 196m/s2-impact: acceleration 735m/s2 | Seal:MIL-DTL-D38999 Low Pressure Immersion Requirements |
| Rated voltage: 500V | Impact: acceleration 735m/s2 |
Applications:
D38999 20FE35SN connectors comply withMIL-DTL-D38999standards and are ideal for many industrial applications. It is designed to withstand harsh environmental conditions and operates in the temperature range of-60 to +200°C.
This socket connector is highly durable and reliable. D38999 20FE35SN connectors are suitable for a variety of applications, such as drones, warships, aerospace, radar, oil, natural gas oil, military and civilian vehicles, submarines, aircraft, automation manufacturing, wind power generation, robots, medical equipment and other industries, and industrial systems, computer systems, data acquisition systems, communication systems, control systems navigation systems and instrumentation systems.
The connector is easy to install and provides excellent signal performance, making it a cost-effective solution for any application that requires a reliable and secure connection.
Custom:
Connector is an advanced and reliable aviation plug connector. Model number D38999 20FE35SN. MIL-DTL-D38999can accept customized products and services in addition to conventional models.connectors can meet your needs.
