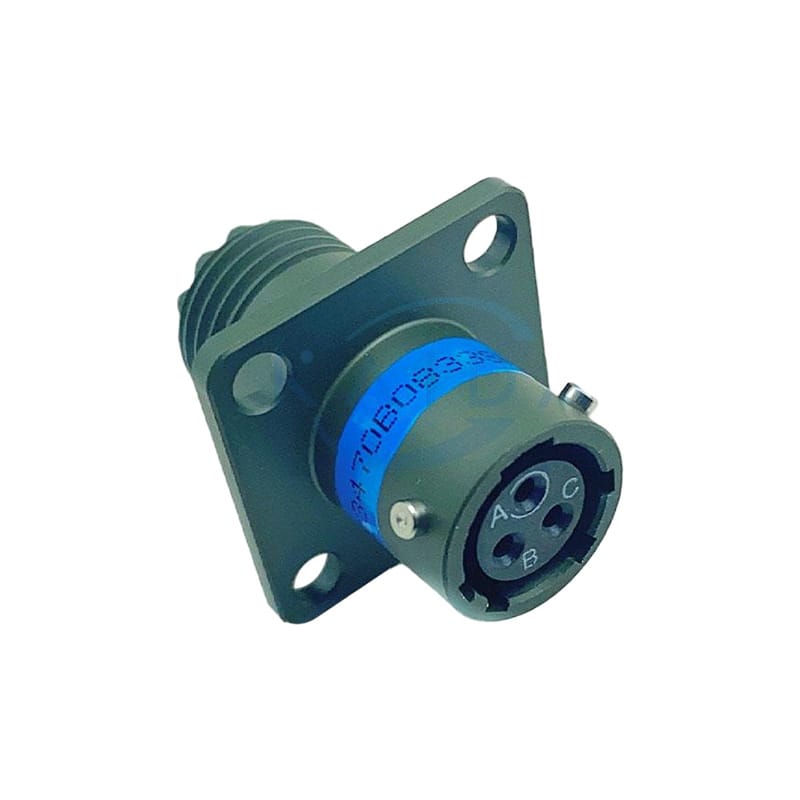

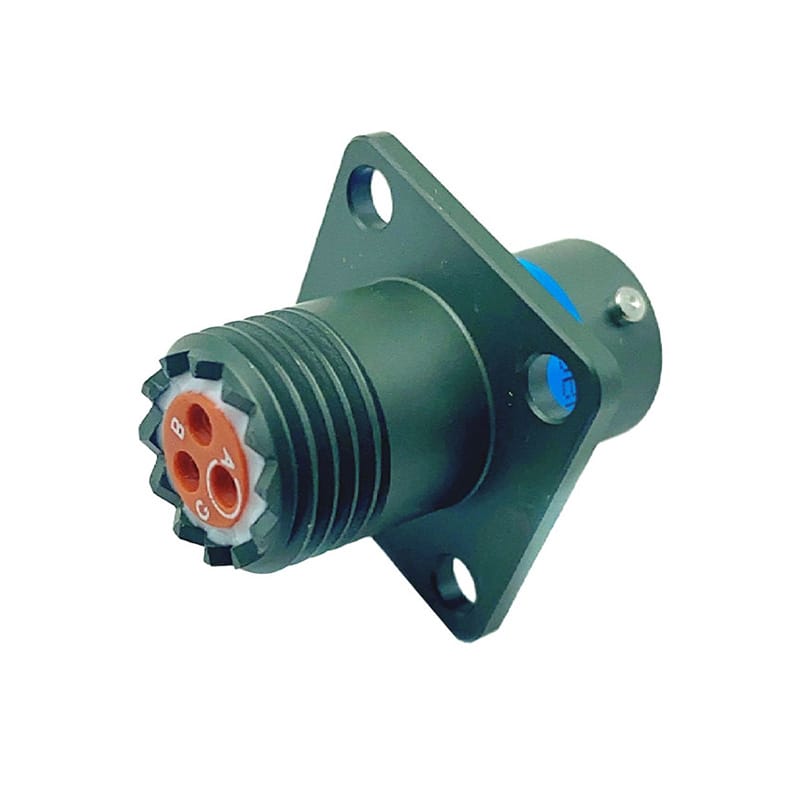

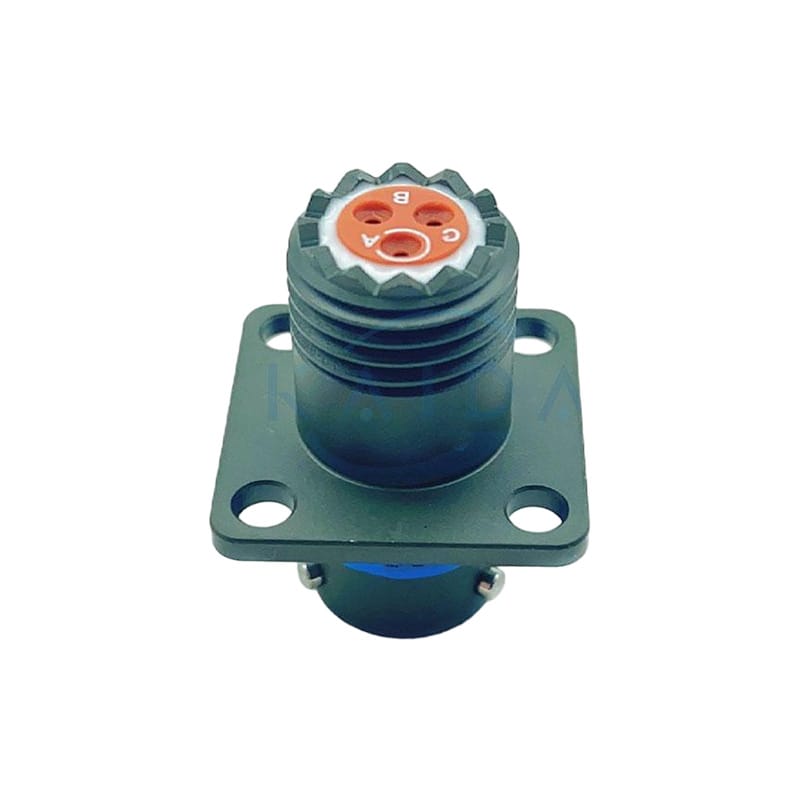

MIL-C-26482 Series1Standard, MS3470B08-33SN Bayonet Quick Connect, with anti-release mechanism. Small size, light weight, high contact density, and with electromagnetic shielding function, contact can be removed, pin anti-oblique insertion.
Mil-C- 26482 Series Aviation Plug Connector 3-Pin Socket Plating Military Green Color And Other Shell Options 26482 Series 2 Welding/Crimping
| MILspec：MIL-C-26482 | Shell material; aluminum alloy/stainless steel/titanium alloy/composite materials, etc. |
| Gender:Socket | Contact material: copper alloy plating |
| Mating Cycles:Greater than 500 | Operating current: 5V |
| Connector type: circular electrical connector | Salt fog;500 hours |
| Highlights:MIL-C- 26482 round electrical connector aviation plug | |
| Highlights:MIL-C- 26482 snap-in quick connect electrical connector | |
| Highlights:MIL-C- 26482 Small size, light weight, high contact density | |
Payment and Delivery Terms:
| Packaging Details: Standard Export Packaging | Delivery time:1-4 weeks |
| Payment method: | Supply capacity: 100,000 |
Product Description:
MIL-C-26482 Series1Standard, MS3470B08-33SN Bayonet Quick Connect, with anti-release mechanism. Small size, light weight, high contact density, and with electromagnetic shielding function, contact can be removed, pin anti-oblique insertion.
It has high strength vibration characteristics under high temperature, suitable for use in bad sand and wet occasions. 12#16#20#contact specifications hole position can be assembled fiber optic accessories, 12#10#8#contact specifications hole position can be assembled coaxial, shielding contacts with stainless steel shell, titanium alloy shell, aluminum alloy shell, and a variety of coatings.
The product is used for circuit signal connection, product application fields include UAV, warship, aerospace, radar, oil, natural gas oil, military and civilian vehicles, submarines, aircraft, automation manufacturing, wind power generation, robots, medical equipment and other industries, with high anti-vibration and anti-impact ability, can withstand extreme high temperature, humidity and high altitude harsh environment.
The MIL-C-26482 connector provides excellent reliability durability performance and is the ideal solution for reliability applications. Complying with stringent quality standards, this connector finger provides reliable and secure connections for a wide range of applications.
Features:
Product Name: MS3470B 08-33SN
MIL-C-26482 Aerial Plug Connector Product Specification:MIL-C-26482 Part Number: MS3470B 08-33SN Type: Socket Operating Temperature: -55 ℃–125 ℃
Technical Parameters:
| Product working temperature: -55℃~125℃ | Acceleration: frequency 10~2000Hz acceleration |
| Rated operating current: 22.5A | Mechanical life: more than 500 times |
| Insulation resistance: ≥5000MQ | Damp heat: perMIL-C- 26482:24 hours 10 cycles |
| Liquid resistance: resistant to a variety of fuels, coolants, solvents | Salt spray: 500 hours |
| Vibration: Frequency 10~2000Hz Acceleration 147m/s2-Impact: Acceleration 490m/s2 | Seal: MeetsMIL-C- 26482 Low Pressure Immersion |
| Rated voltage: 500V | Impact: acceleration 490m/s2 |
Applications:
MS3470B08-33SN connectors conform toMIL-C-26482 standard and are ideal for many industrial applications. It is designed to withstand harsh environmental conditions and operates in the temperature range of-55 to +125°C. This socket connector is highly durable and reliable.
MS3470B 08-33SN connectors are suitable for a variety of applications, such as drones, warships, aerospace, radar, oil, natural gas oil, military and civilian vehicles, submarines, aircraft, automation manufacturing, wind power generation, robots, medical equipment and other industries, and industrial systems, computer systems, data acquisition systems, communication systems, control systems navigation systems and instrumentation systems.
The connector is easy to install and offers excellent signal performance, making it a cost-effective solution for any application requiring reliable and secure connections.
Custom:
Connector is an advanced and reliable aviation plug connector. The model number is MS3470B08-33SN. MIL-C-26482 can accept customized products and services in addition to conventional models.connectors can meet your needs.
