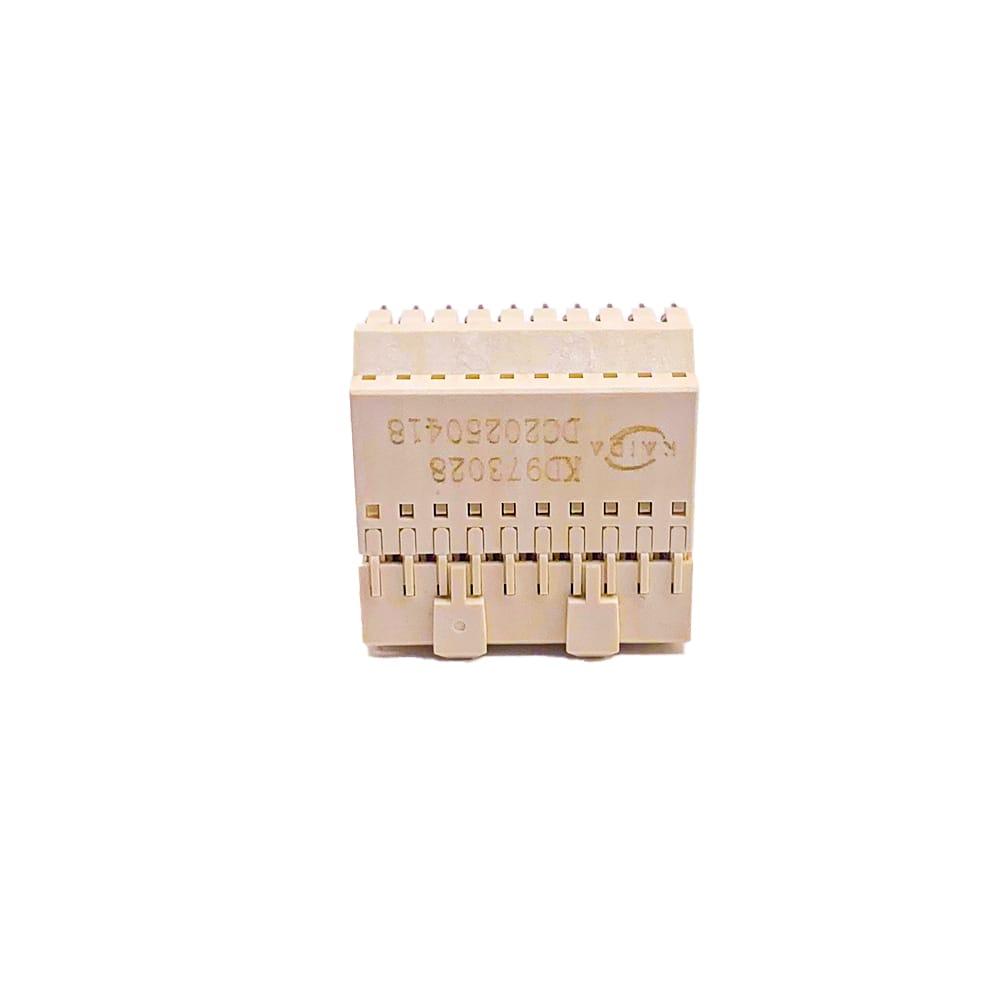

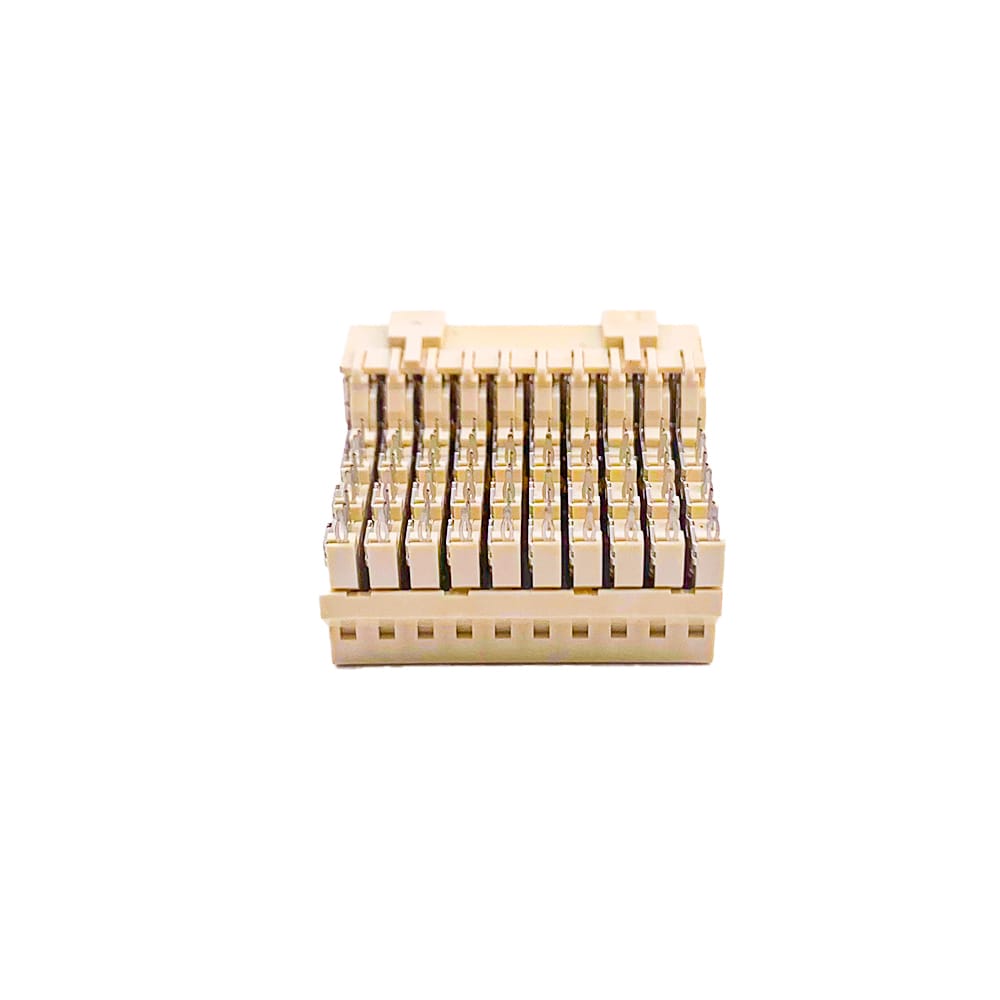

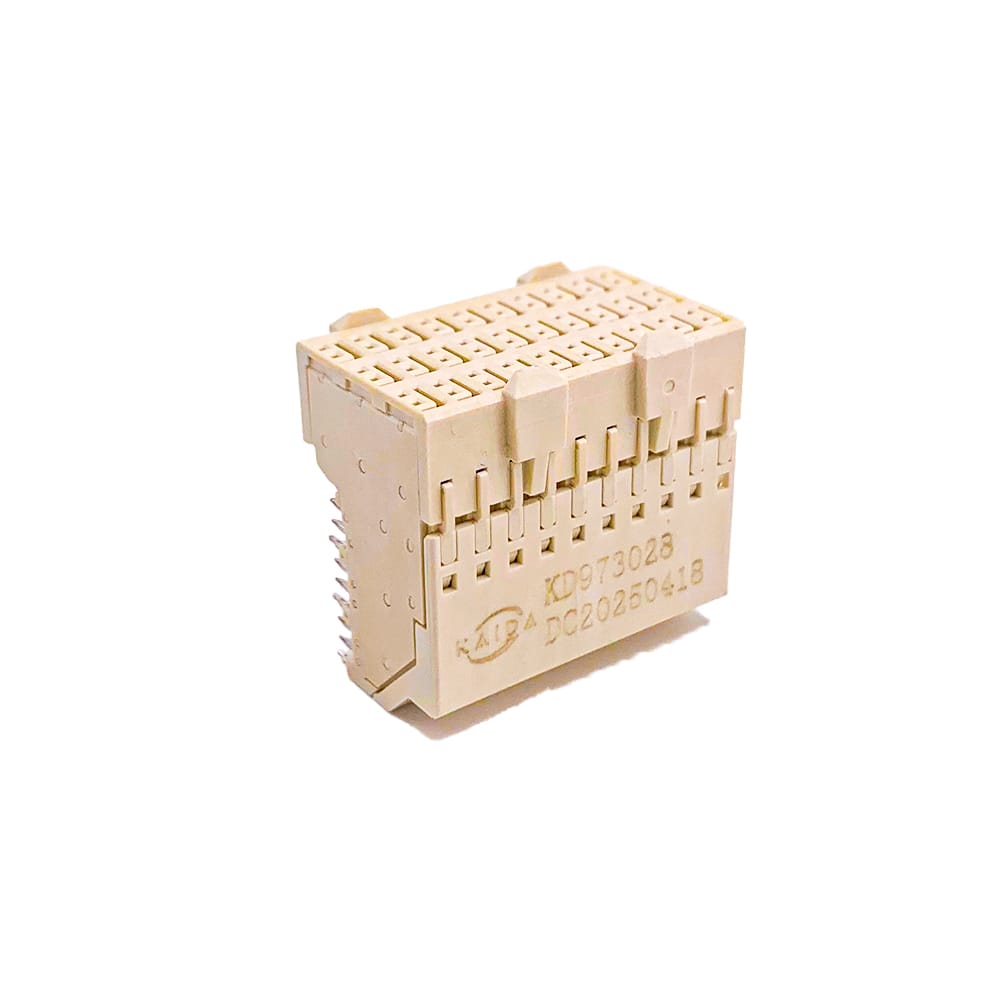

It can be used with 2.5mm backplane series, which meets the requirements of CPCI/PXIe/ATCA bus. High density board-to-backplane connection system. Unique female head double blade structure provides effective signal transmission path
Materials:
Insulation: LCP (UL94V-0)
Contact part: phosphor bronze
Plating:
Electroplating nickel, tin and gold
Performance:
Rated current: 0.9A/20℃ 0.7A/70℃ 0.4A/100℃
Rated voltage: Insulation resistance: 10000MΩ
Withstand voltage: 500V AC (60s)
Number of plug-ins: 250
Crosstalk: <3% at 100ps
Insertion loss: <1dB (up to 3GHz)
Differential impedance: 100Ω±10%
Propagation delay: pin A 97±10ps; pin B 107±10ps; pin C 125±10ps; pin D 134±10ps; pin E 157±10ps; pin F 166±10ps; pin G 187±10ps; pin H 199±10ps;
Features:
–Independent shield contact
–Low-noise, dual-contact, blade-type terminals with one grounding lug per signal pair
Internal structure:
