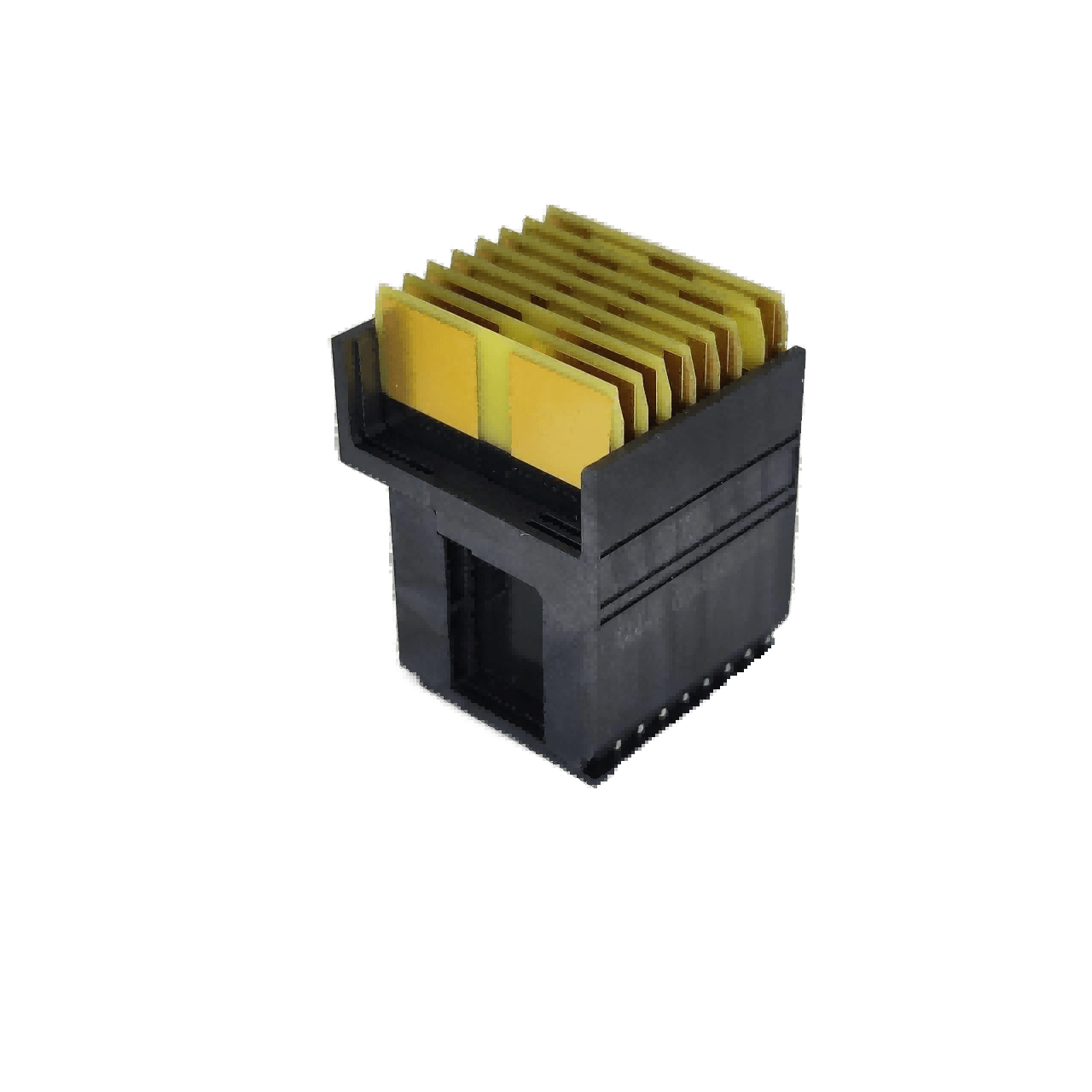

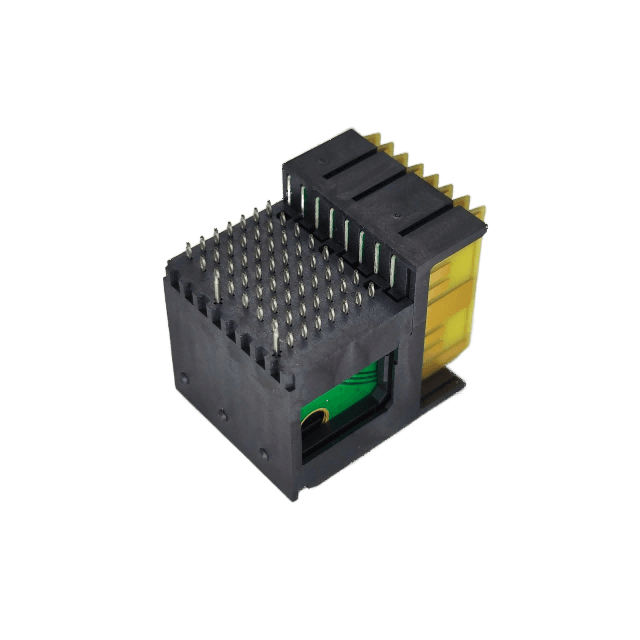

Modular combination structure to support secondary support. Integrated structure, can simultaneously transmit high-speed differential, single-ended, power and other signals. Contact parts adopt double contact form, good environmental resistance
PRODUCT INTRODUCTION：
In accordance VITA46/48 standard, the military high density,high speed, modular and general electricalconnector can realize the reliable transmission of high speed data among the new generation of integratedawionics,fire coritrol radar, sonar and image processing and high-spoed commurication dry PCB backboardthrough VPX bus system,its modular combination structure can realze infegrated transmission of differ-ential signals, including single terminal signal, power supply and other signals, and it is terminated throughsolderless pressure.
Material:
Insulation part: LCP (UL94V-0)
Contact part: phosphor bronze
Plating: Electroplating nickel, tin and gold
Performance:
Rated current: 1A
Rated voltage: 50V
Insulation resistance: 1000MΩ
Withstand voltage: 500V AC (60s)
Number of plug-ins: 500
Differential impedance: 100±10Ω
Crosstalk: ≤-30dB
Insertion loss: absolute value ≤3dB
Delay: ≤20ps
Features:
– Modular combination structure to support secondary support
–Integrated structure, can simultaneously transmit high-speed differential, single-ended, power and other signals
–Contact parts adopt double contact form, good environmental resistance
–High speed part adopts silicon chip (gold finger) structure, which has the advantages of tight connection, low insertion loss and low bit error rate.
