Compact design supporting multi-pin configurations for complex PCB layouts. Stable Contact Performance – Gold-plated contact surfaces ensure low resistance and long-term reliability. Rugged housing materials resist vibration, shock, and corrosion
| Series | Core/Pin | Model | Spacing (MM) | Describe |
| JL24 | 4～34 | TKY（WITH WIRE） | 2 | Double-row, plug with cable |
| TKH | Double row, plug welding | |||
| ZJB | Double-row, socket (straight) | |||
| ZJW | Double-row, socket (curved) | |||
| JL23 | 6～34 | TKY（WITH WIRE） | 2.54 | Double-row, plug with cable |
| TKH | Double row, plug welding | |||
| ZJB | Double-row, socket (straight) | |||
| ZJW | Double-row, socket (curved) | |||
| JL4 | 2～12 | TKY（WITH WIRE） | 2 | Single-row, plug ribbon |
| TKH | Single row, plug welding | |||
| ZJB | Single row, socket (straight) | |||
| ZJW | Single row, socket (curved) | |||
| JL27 | 2～20 | TKY（WITH WIRE） | 3.96 | Single-row, plug ribbon |
| TKH | Single row, plug welding | |||
| ZJB | Single row, socket (straight) | |||
| ZJW | Single row, socket (curved) | |||
| JL27A | 2～20 | TKY（WITH WIRE） | 3.96 | Single-row, plug ribbon |
| TKH | Single row, plug welding | |||
| ZJB | Single row, socket (straight) | |||
| ZJW | Single row, socket (curved) | |||
| JL29 | 2～25 | TKY（WITH WIRE） | 2 | Single-row, plug ribbon |
| ZJB | Single row, socket (straight) | |||
| ZJW | Single row, socket (curved) | |||
| JL35 | 2～12 | TKY（WITH WIRE） | 2.54 | Single-row, plug ribbon |
| TKH | Single row, plug welding | |||
| ZJB | Single row, socket (straight) | |||
| ZJW | Single row, socket (curved) | |||
| JL5 | 2～52 | TJB | 2 | Double row, plug, solder plate |
| ZKB | Double row, socket, solder plate | |||
| TJB-1 | Double row, plug, solder plate | |||

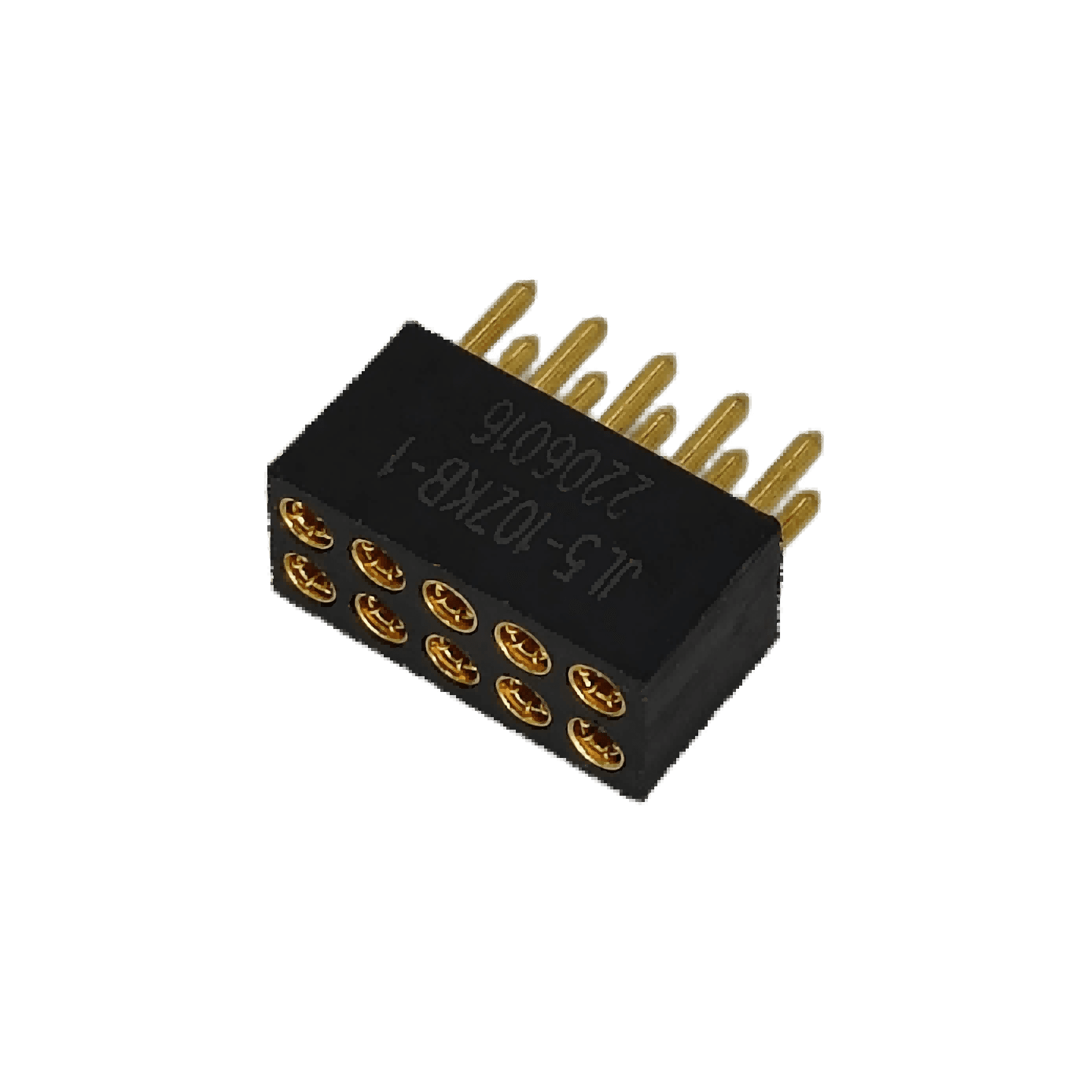

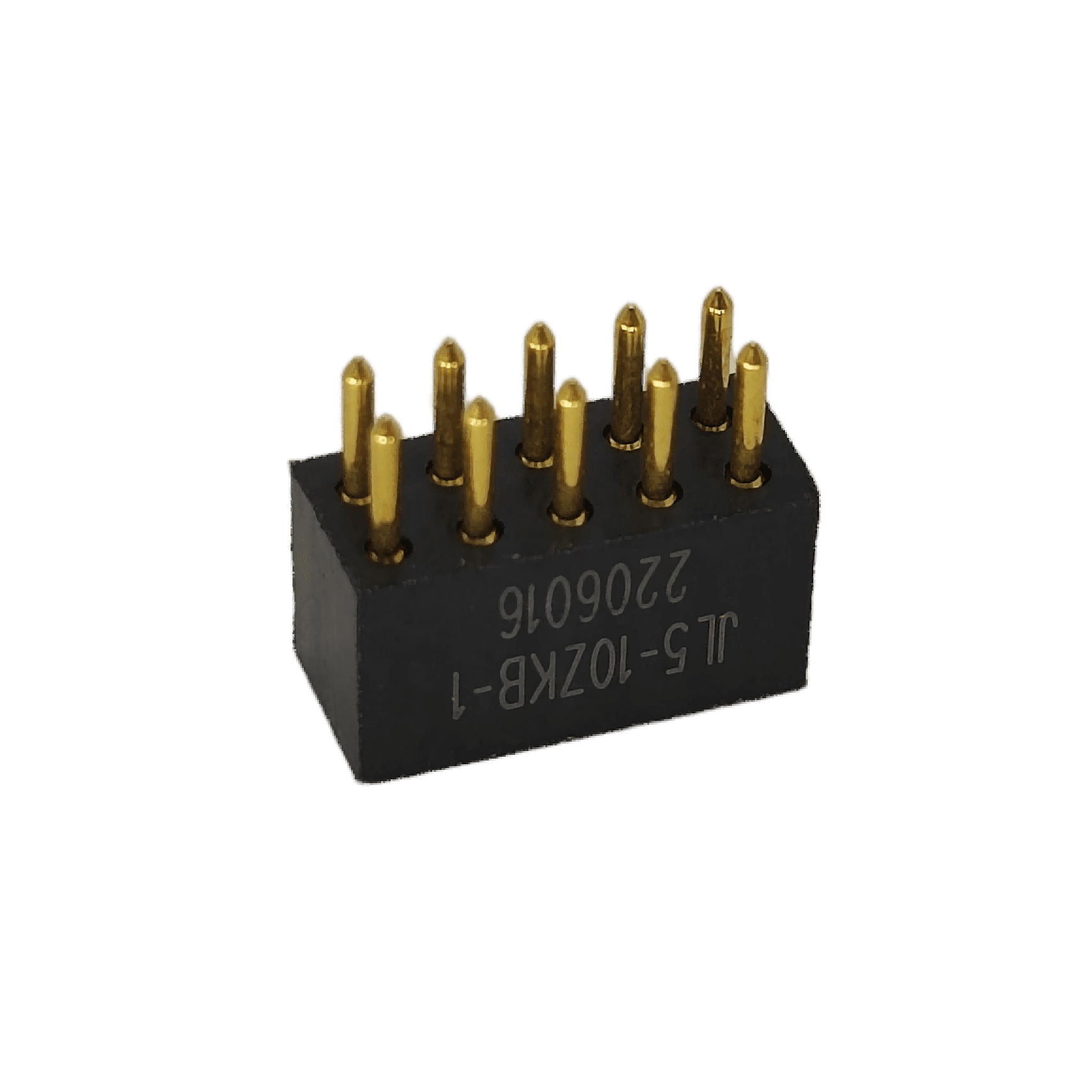

| ZKB-1 | Double row, socket, solder plate | |||
| TJB-2 | Double row, plug, solder plate | |||
| ZKB-2 | Double row, socket, solder plate |
Main feature:
Refer to GJB1438-1992 and MIL-C-55302;
Adopt advanced single blade revolution hyperboloid wire spring jack;
Contact parts are gold-plated parts, using φ0.6 wire spring contact pairs, spacing is 2.00mm.
Technical parameters:
Rated voltage:300V(AC)
Rated current:1A(φ0.6)
Contact resistance:≤12.5mΩ
Insulation resistance:5000mΩ(normal state);100mΩ(wet heat)
Withstand voltage:1000V(AC)
Mechanical life:500 cycles
Operating temperature:-55℃~+125℃
Relative humidity:90%~95%(40±2℃)
Vibration:10~2000Hz, 147m/s2, instantaneous break ≤1us
Impact:980m/s2, instantaneous break ≤1us
