Many models, support selection customization, please contact us.
Technical characteristic

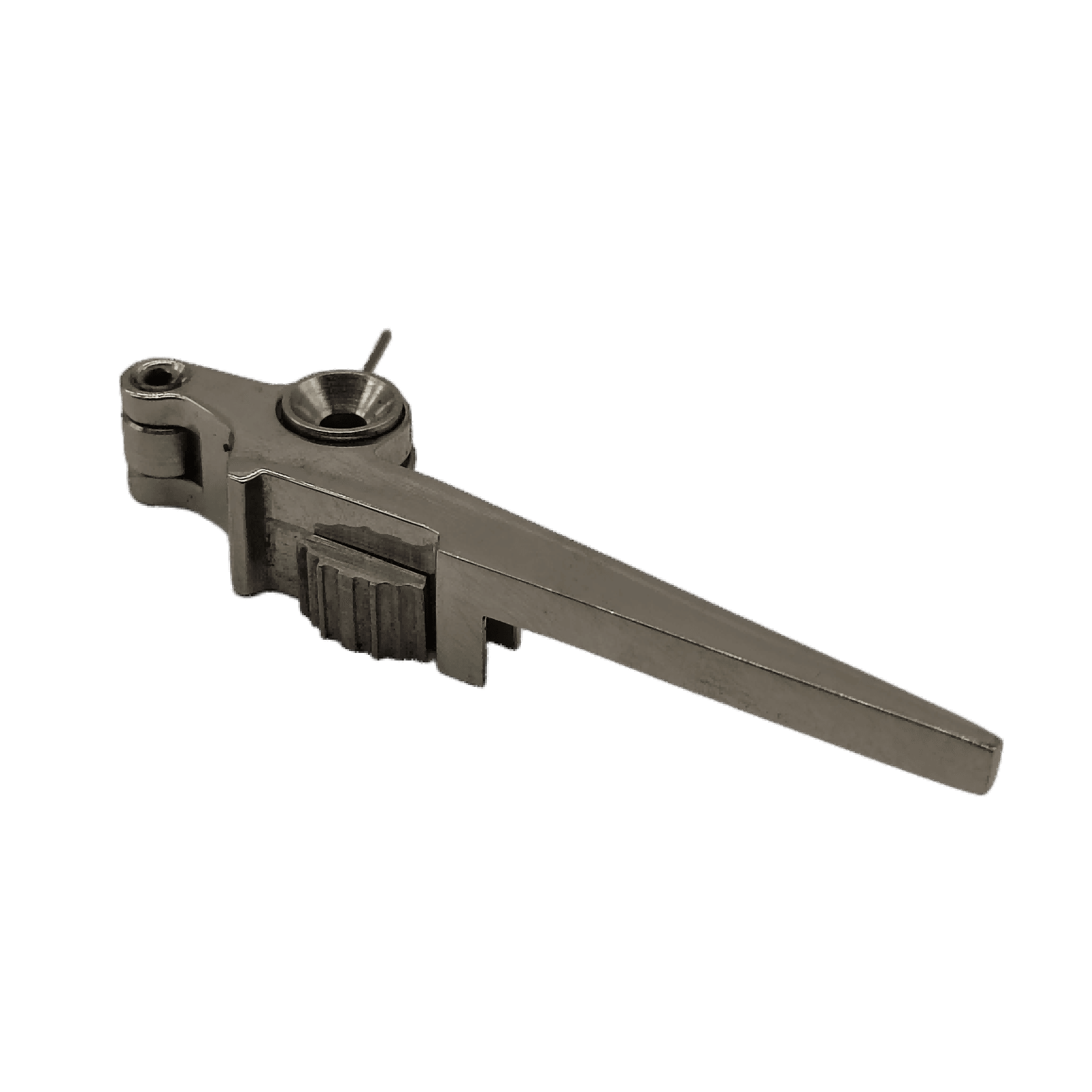

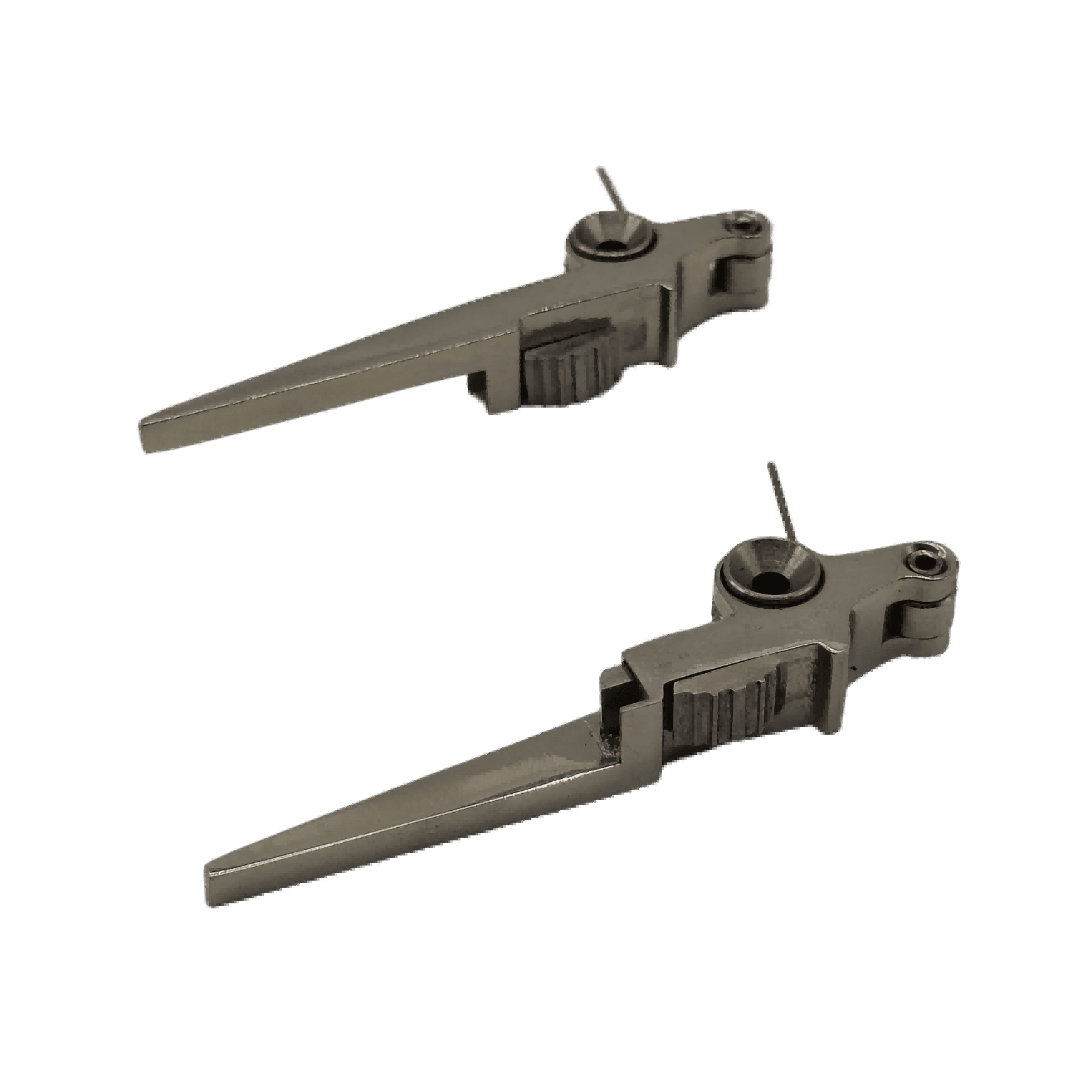

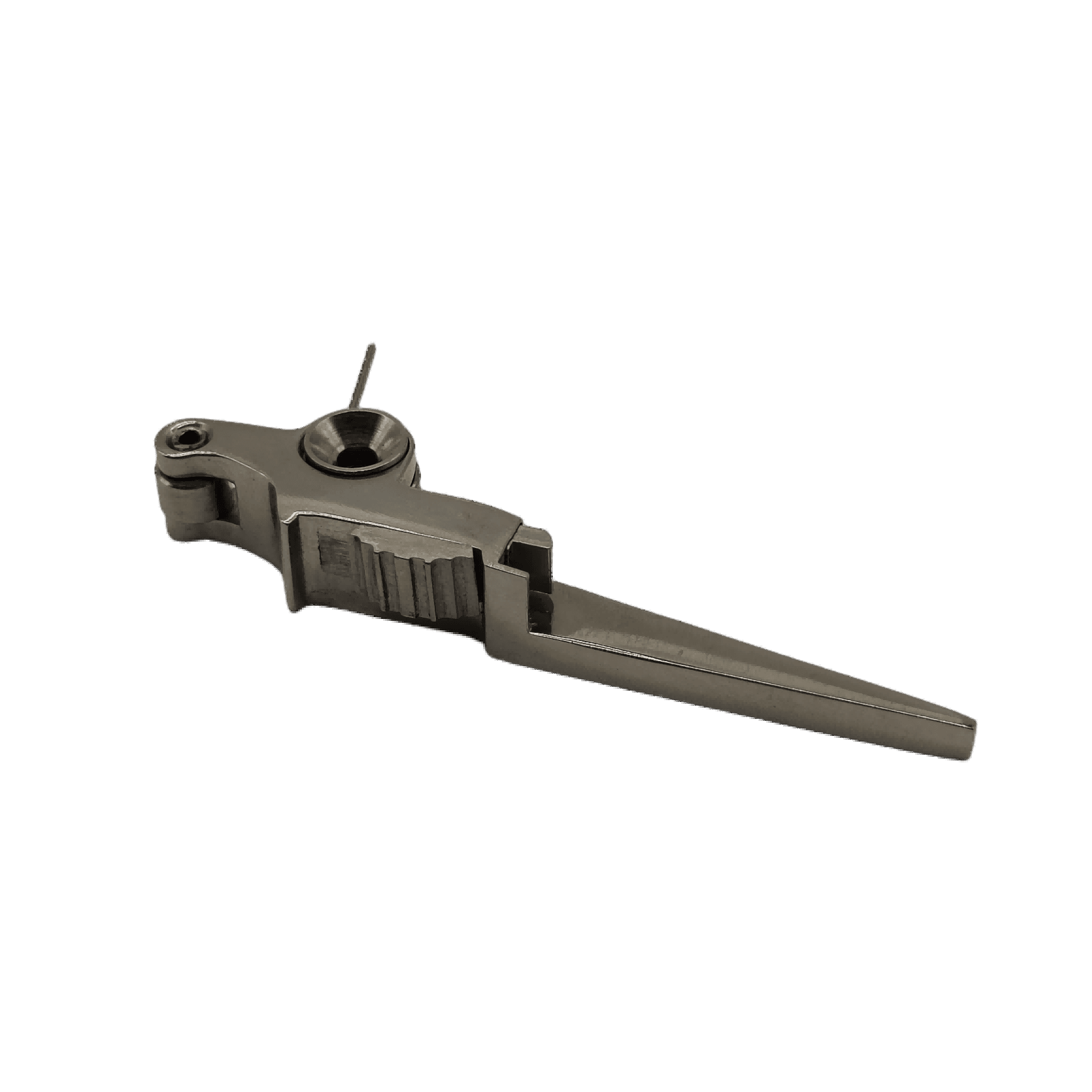

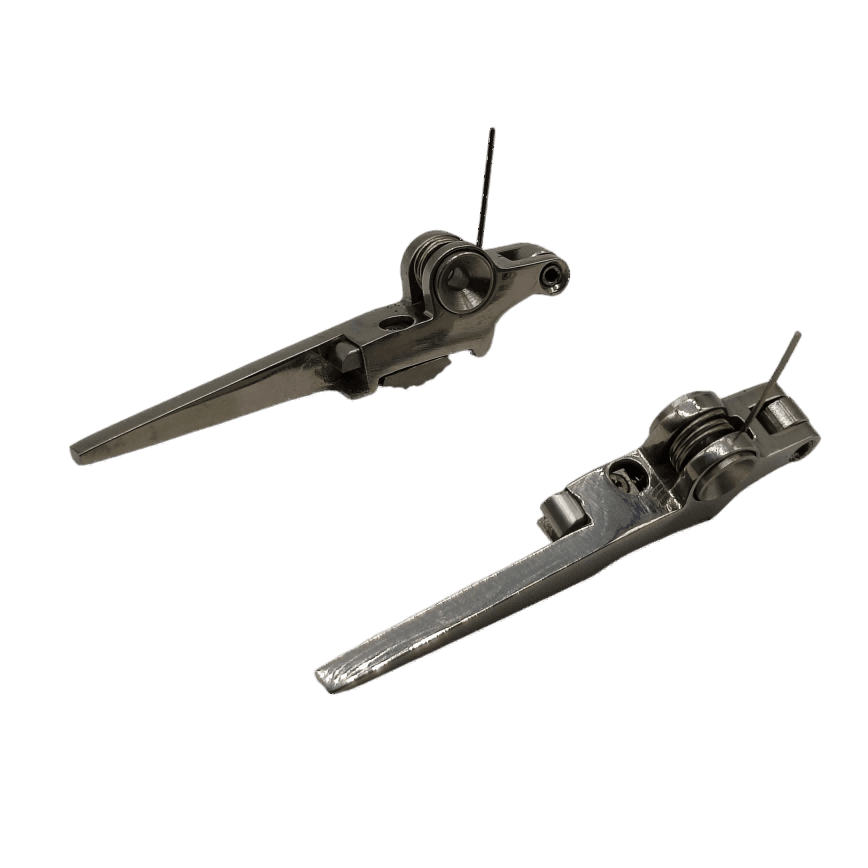

Support VPX high-density connector ultra-high mating force applications, specifically designed for LRM modules.
Power insertion/extraction function, each handle provides no less than 450N insertion force.
Single side slender handle, not only makes it easier to insert and remove modules, but also effectively reduces the space occupied by the front of the module.
With self-locking/limit function, used for card locking and unlocking button, so that card operation more reliable.
Under the premise of ensuring all available functions, the weight is further reduced to less than 14 grams.
Material selection 316L stainless steel, surface wiredrawing polishing treatment, with strong corrosion resistance.
Environmental adaptability:
Operating temperature:-55℃~+125℃
Wet heat:1 cycle 24h, 6 cycles in total
Salt spray: can withstand +35℃, 5% salt solution salt spray atmosphere 96h
Mechanical life of 500 cycles
Material:316L stainless steel
Scope of supply: handle, mounting fixture
Note: The mechanical size of the heat transfer box for the LRM module needs to be considered when designing the structure of the heat transfer box for the LRM module.
