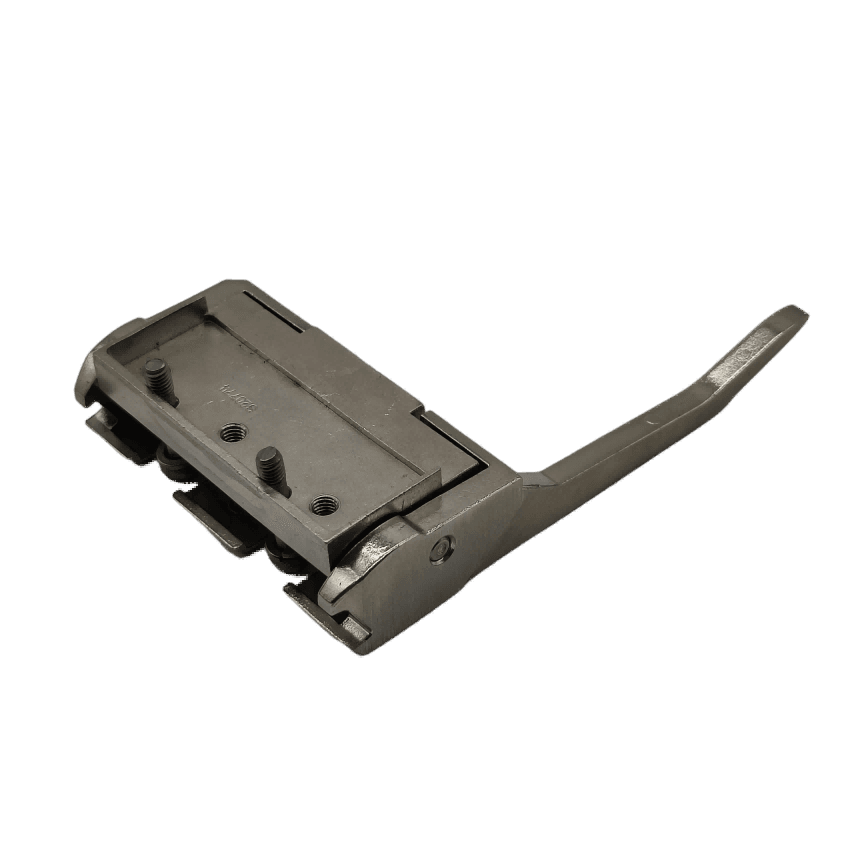

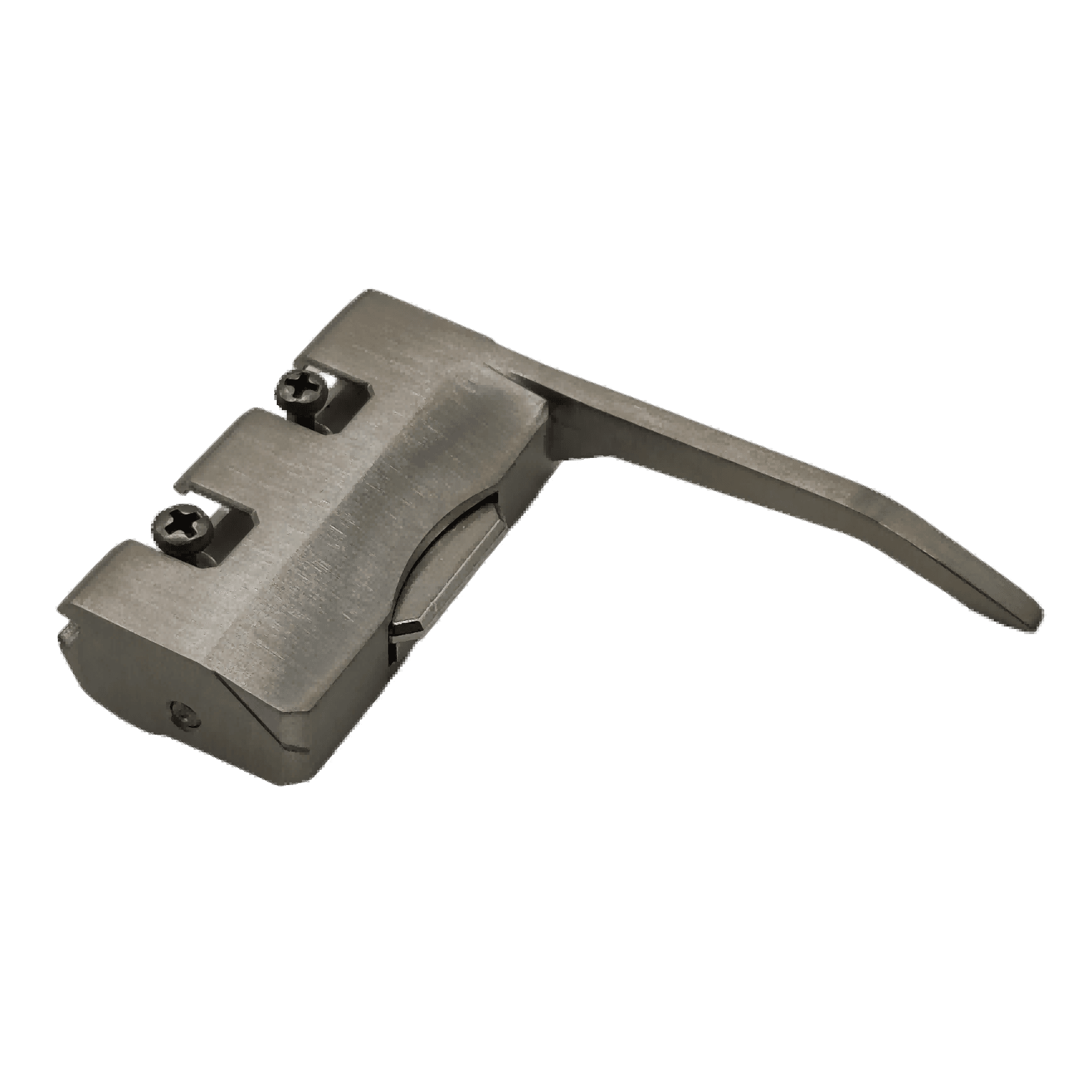

HD-203-10/HD-204-10 – VPX-S-I stainless steel puller: 10HP

Support VPX high-density connector ultra-large mating force applications, specifically designed for military VPX applications

1. Power insertion/extraction function, each handle provides no less than 1000N insertion force

2.10HP width for high power VPX power modules

3. Single-sided long handle, do not take up the panel space, can open hole area is larger;
4. With self-locking function, used for card locking and unlocking button, make the card operation more reliable
5. the handle is attache to that panel in the locked state, thereby greatly save the front operation space of the panel
6. the stroke of that handle is open and closed back and forth by take the shaft pin as the center of a circle, so that the plugging and the unplugging are more labor-saving; and the operation handle doe not need to occupy the extra space at the top and the bottom of the board card, so that the handle is particularly suitable for an inward-sinking cage or an application system with a narrow space
7. Material 316L stainless steel, with strong corrosion resistance

Material:

316L Stainless Steel

Scope of supply:

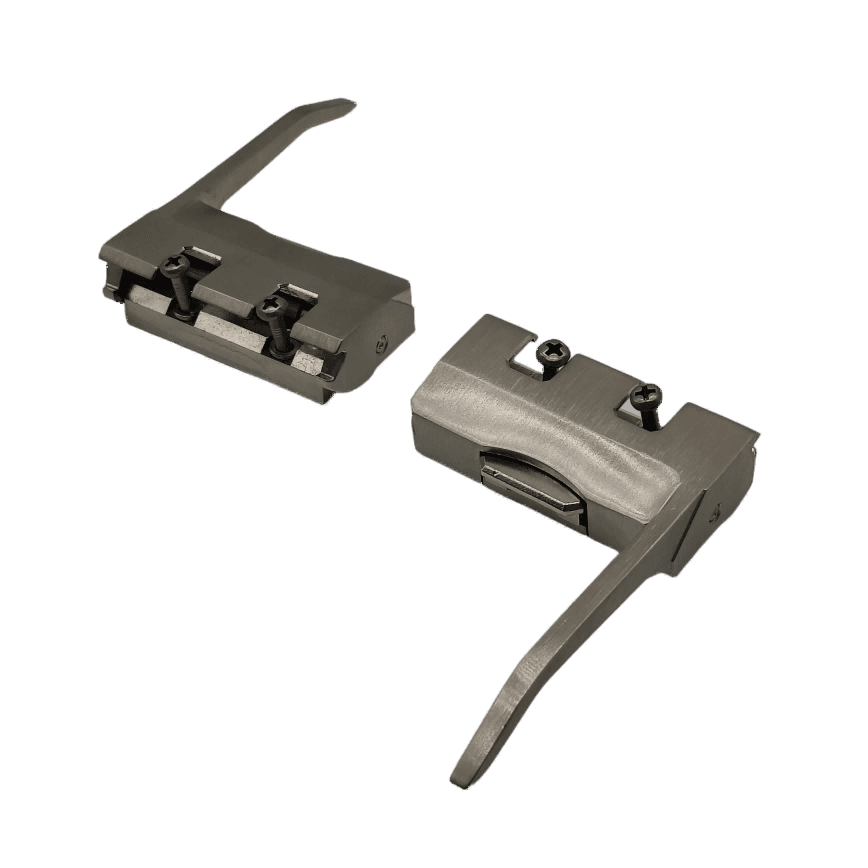

Handle, mounting fixture (handle to panel set screw, handle to beam set screw)

Remark:

To be used in conjunction with beams adapted to VPX structural specifications; suitable for panel widths of 10HP or greater
