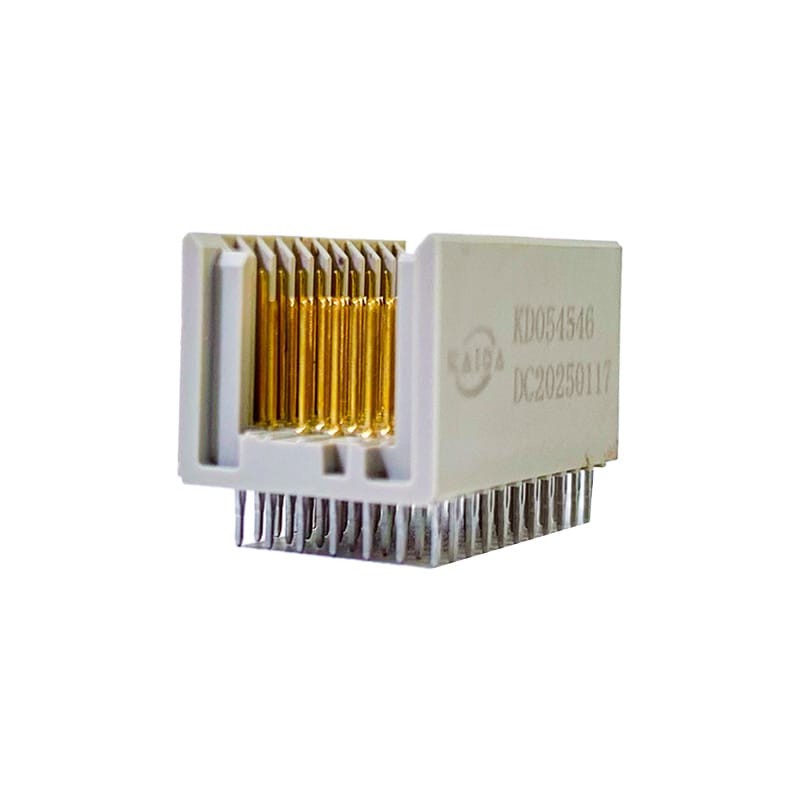

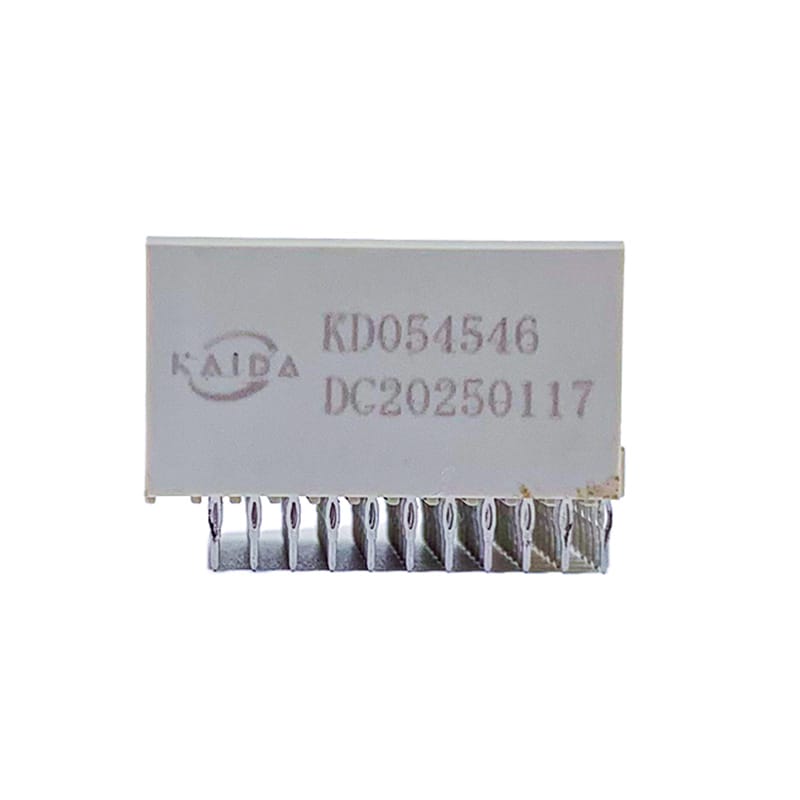

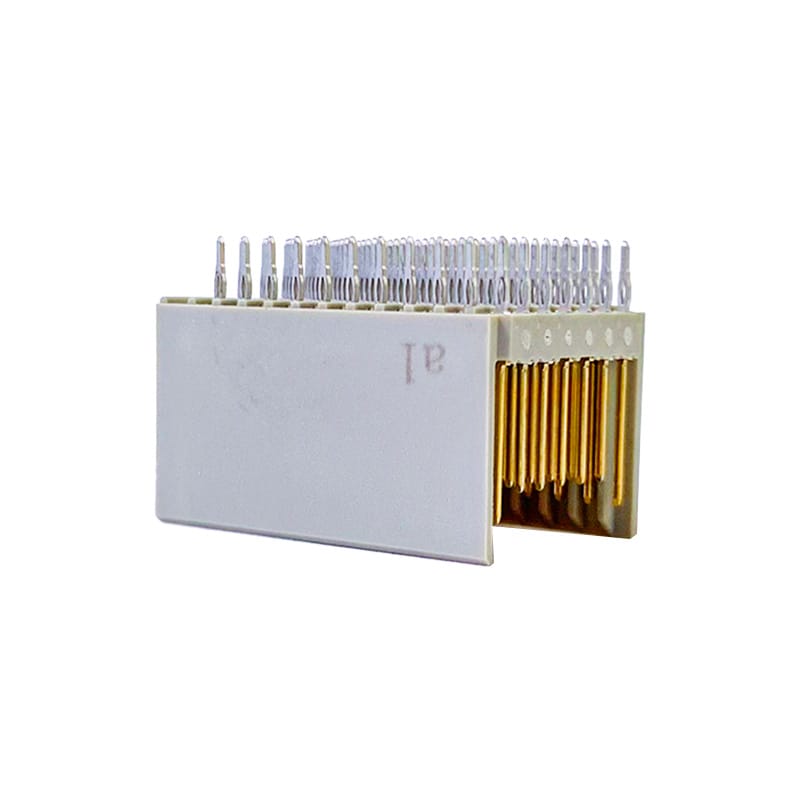

The CPCI Connector KD054546 is a high-density board-to-board connector based on the CompactPCI international standard (PICMG 2.x series). It is designed for harsh industrial environments and supports high-speed signal transmission and long-term stable operation.
Material:
Insulation part: PBT (UL94V-0)
Contact part: phosphor bronze
Plating: Electroplating nickel, tin and gold
Performance:
Rated current: 1A/70℃
Insulation resistance: 10000MΩ
Withstand voltage: 750V AC (60s)
Number of plug-ins: 250
Features:
–Solderless crimping
–It can be used with 2mm backplane series, which meets the requirements of CPCI bus.
–High density board-to-backplane connection system

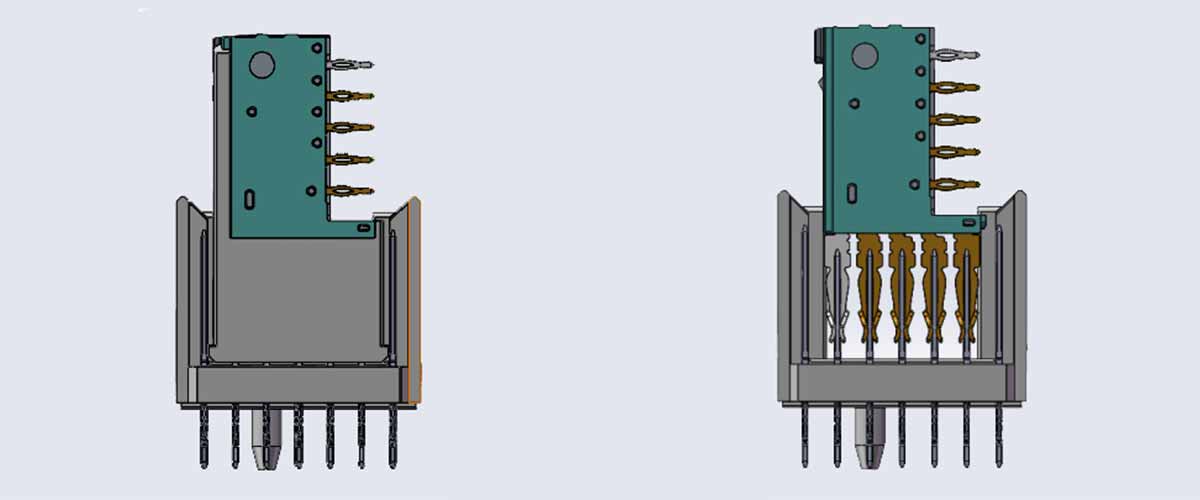

–Unique female head double blade structure provides effective signal transmission path
Driven by continuous R&D investment, we integrate advanced manufacturing and strict quality control to ensure reliable performance in every product.
With global distribution centers and multilingual support teams, we deliver rapid response and localized technical assistance for customers worldwide.
Our full-process service ensures smooth communication, on-time delivery, and prompt after-sales response, building long-term trust with every client.
Each product undergoes comprehensive reliability testing, including high/low temperature, vibration, and salt spray evaluation, ensuring durability in harsh environments.
