Many models, support selection customization, please contact us.

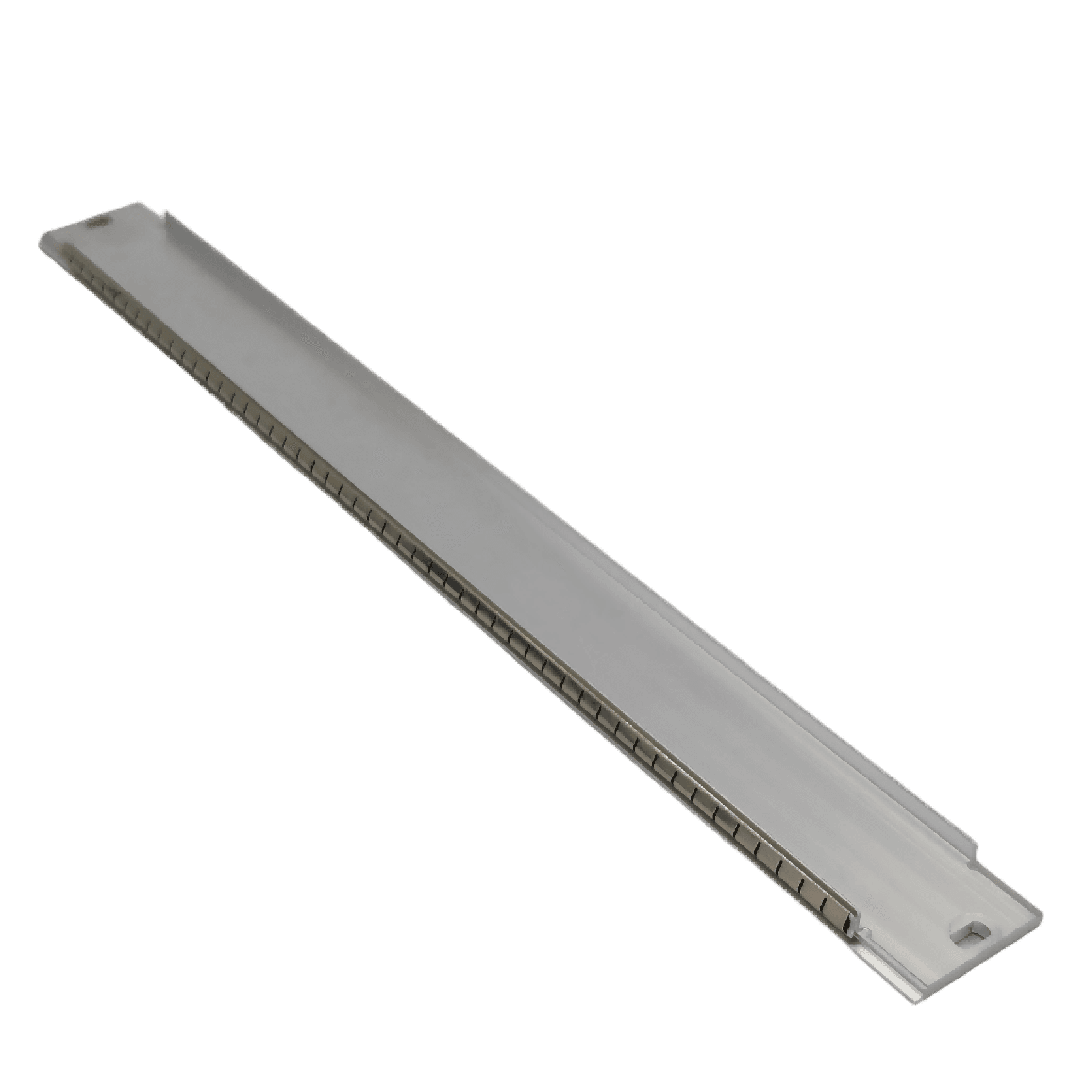

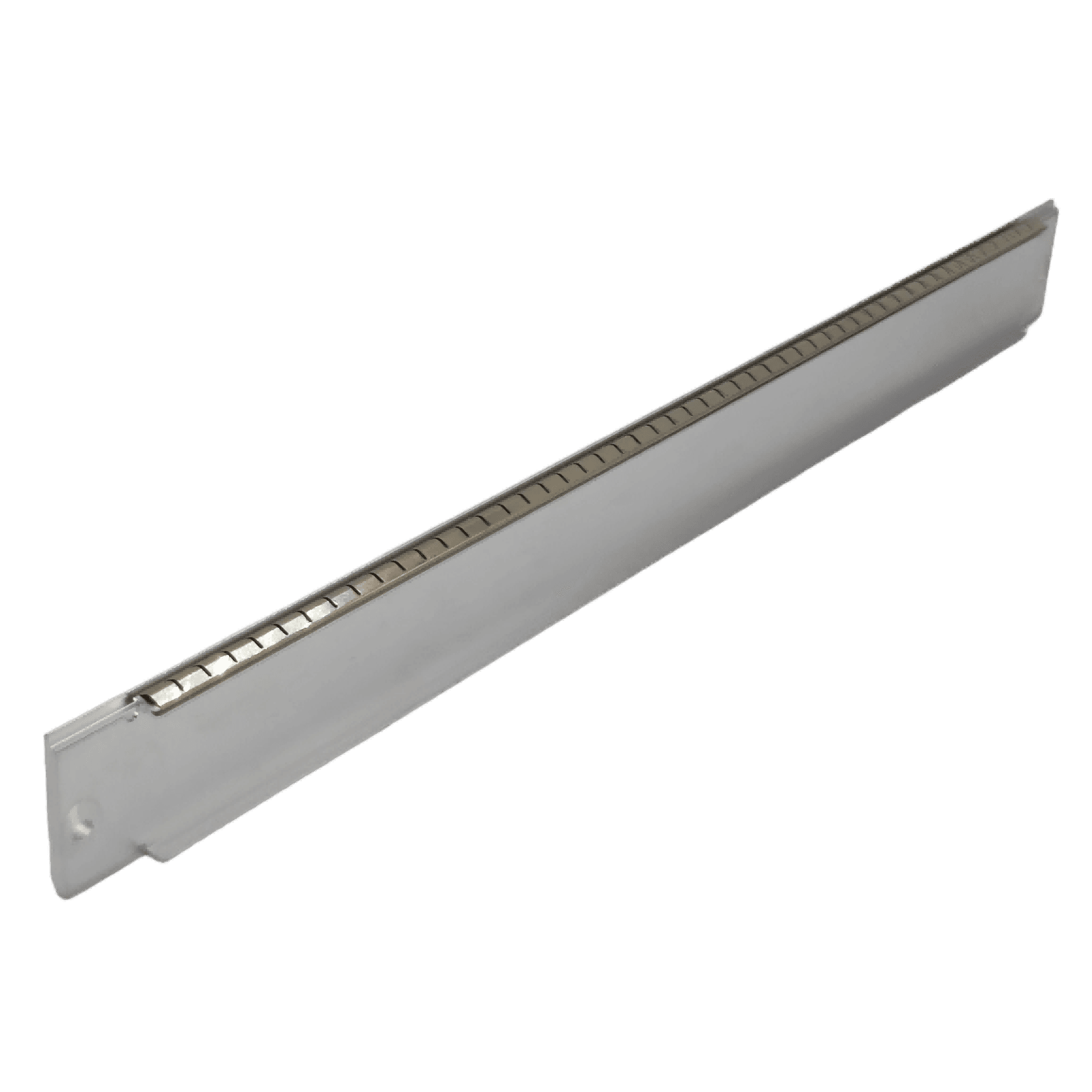

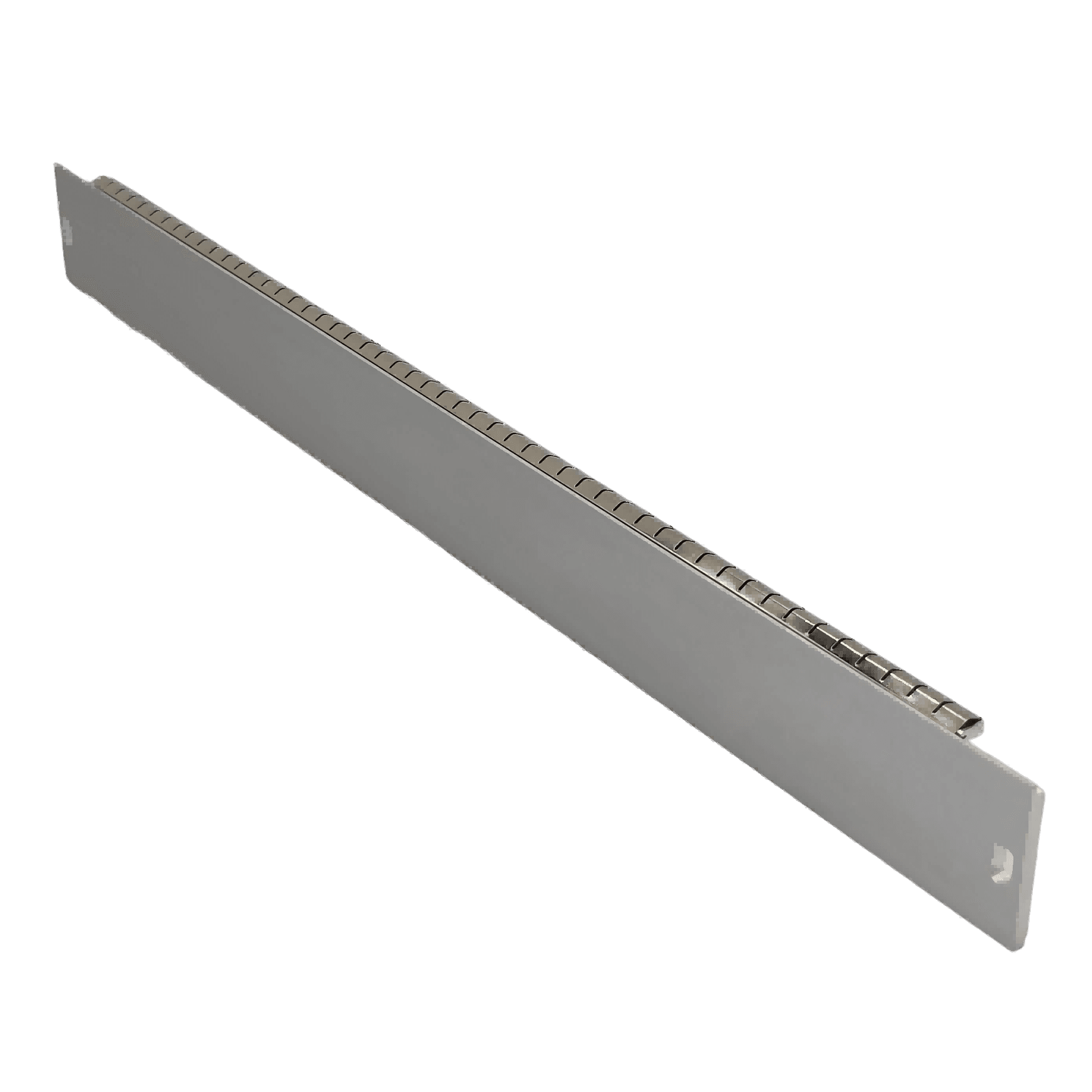

6U5HP chassis panels typically refer to modular chassis front panels that comply with VPX standards such as VITA 46.0 and are 6U (267.2 mm) high and 5HP (approximately 25mm) wide. This type of chassis is designed for highly reliable, high-performance embedded computing applications. Its panel design and functions closely focus on system integration, human-computer interaction and environmental adaptability.
1.Core structural characteristics
The core structural features of the 6U5HP chassis determine the basic form and functional layout of its panel.
1.Standard modular slots: The rear of the front panel features a 6U 5HP 160mm VPX front card slot, providing the foundation for expanding panel functionality.
2.Diversified case form: Depending on the application scenario, the 6U 5HP case can be designed as a portable case, a rack-mounted case or a cold-conducting ruggedized case. Portable usually integrated display and keyboard; on the shelf focus on standard cabinet installation; ruggedized emphasizes harsh environmental adaptability.
3.Backplane support: The slots on the panel are connected to the VPX backplane inside the chassis. The backplane topology (such as Full Mesh) determines the high-speed data interconnection capability between the boards.
2.Panel Common Functional Components
The front panel integrates various functional modules such as system control, status monitoring and external interfaces.
1. Power control system
Power switch: Usually equipped with a main power switch with indicator lights, some designs distinguish between front panel DC control switches and rear panel AC control switches to improve operational safety and reliability.
Power supply interface: AC 220V or wide voltage DC input interface is provided.
2.Status indication and monitoring
Indicator: Always configure status indicators such as power supply, fan failure, DC output, etc., for real-time monitoring of system operation.
Speed control: Integrated manual stepless speed control knob, used to control the internal fan speed of the chassis to balance heat dissipation and noise.
3.Human-computer interface (mostly found in portable cases)
Display screen: Integrated LCD screen, common size 15.4 inches or 17.3 inches, resolution varies.
Input devices: Integrated embedded full keyboard and touchpad.
4.General purpose I/O interface
The front panel often provides basic I/O interfaces, such as Gigabit Ethernet interface, USB interface, HDMI interface, etc., for easy field connection and debugging.
5.Dedicated signal interface (often found in high-performance computing or test chassis)
The front panel of some cases will provide special signal interfaces such as synchronous clock input, external trigger, 1PPS, B code, etc. to meet the requirements of precise synchronization and trigger.
3. Design and Environmental Adaptability
The panel design must meet specific environmental and reliability requirements.
* Thermal Design: The panel design works in conjunction with the overall heat dissipation solution (air cooling or a combination of conductive and air cooling) to ensure stable system operation over a wide temperature range.
* Structural Materials: Utilizing aluminum alloy or a reinforced structure, and equipped with impact-resistant corner protectors, handles, etc., to adapt to portable, vehicle-mounted, or rack-mount requirements.
* Environmental Specifications: Wide operating temperature range, commonly -10℃ to +55℃ or even wider for industrial applications -40℃ to +85℃, while also meeting vibration, shock, and high humidity resistance requirements.
