Many models, support selection customization, please contact us.

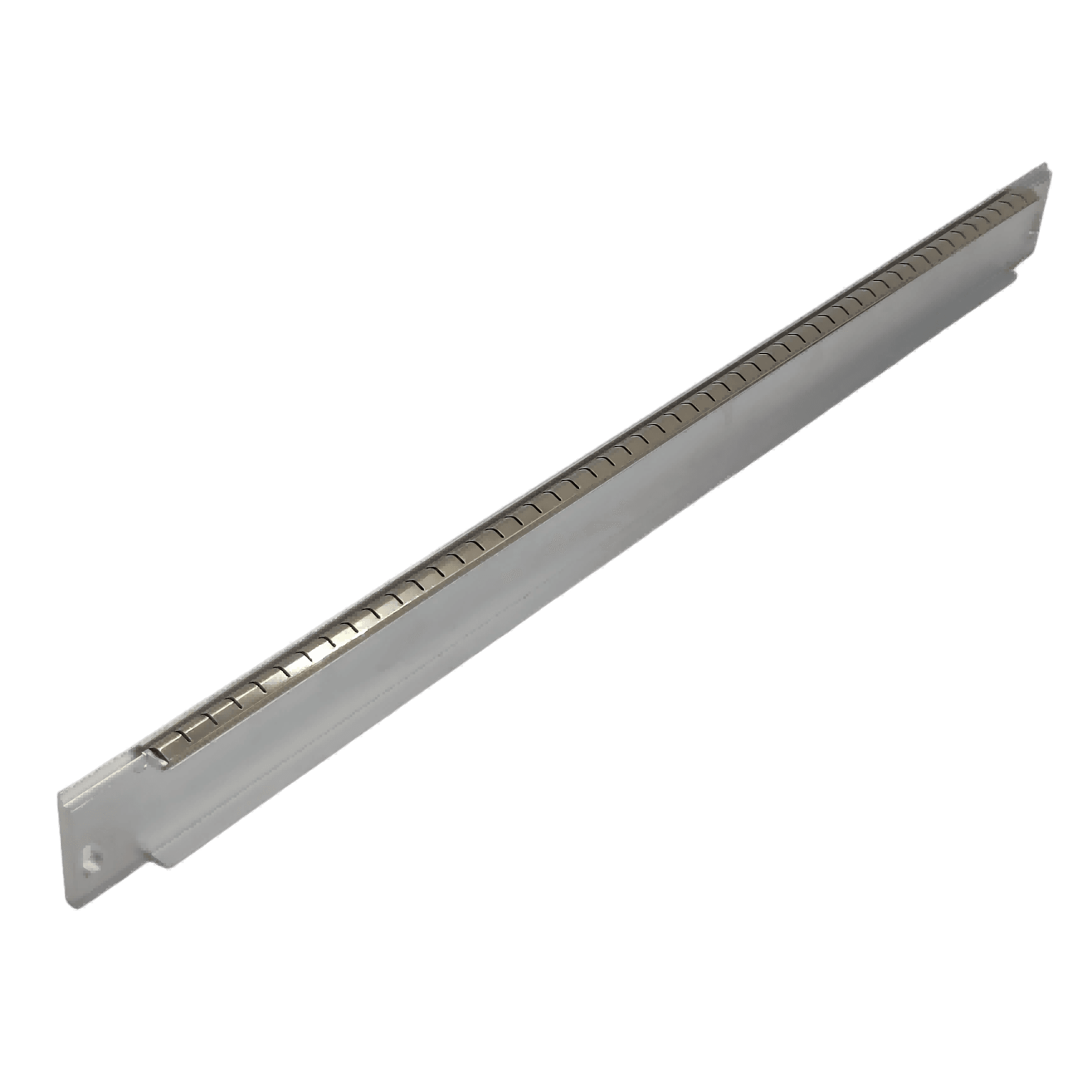

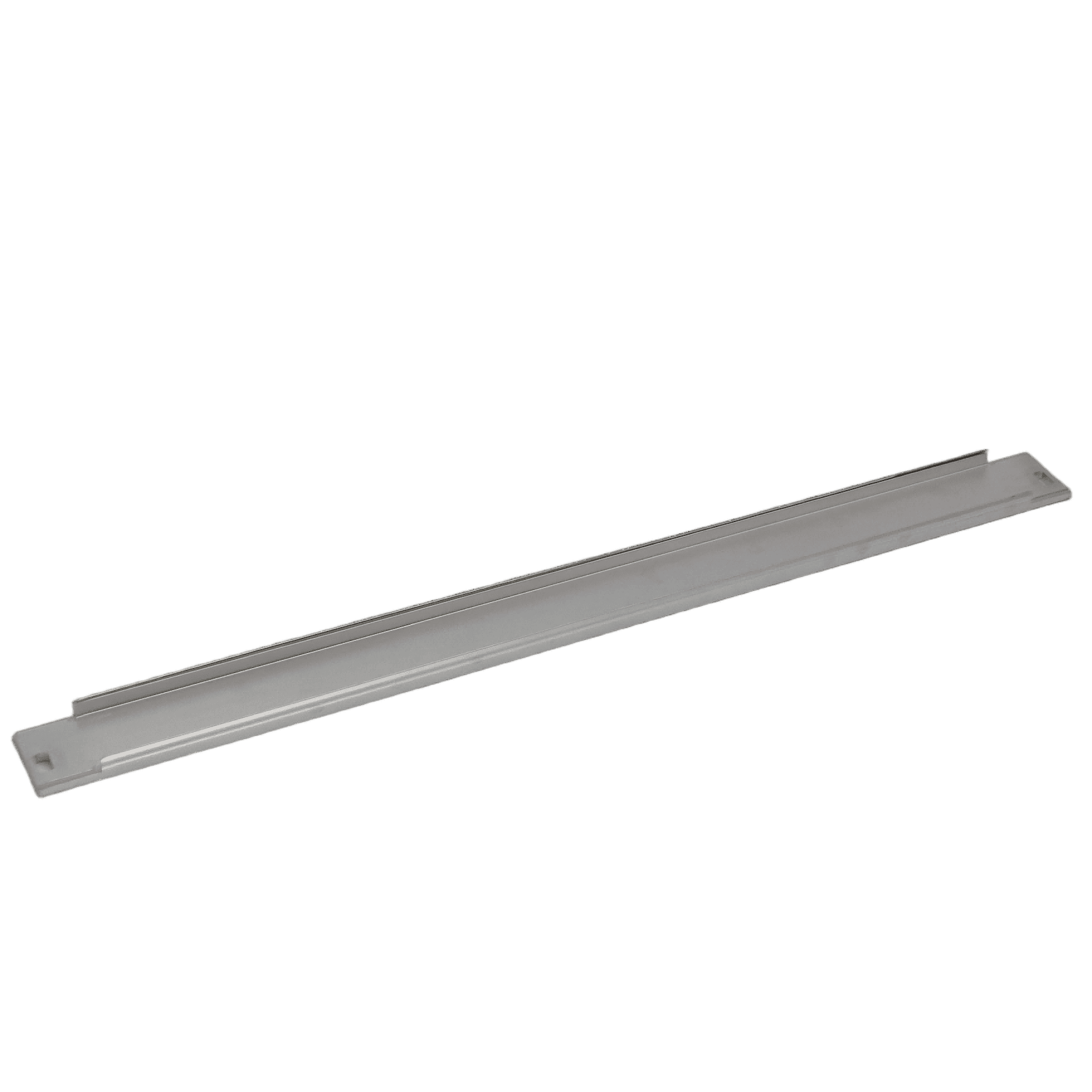

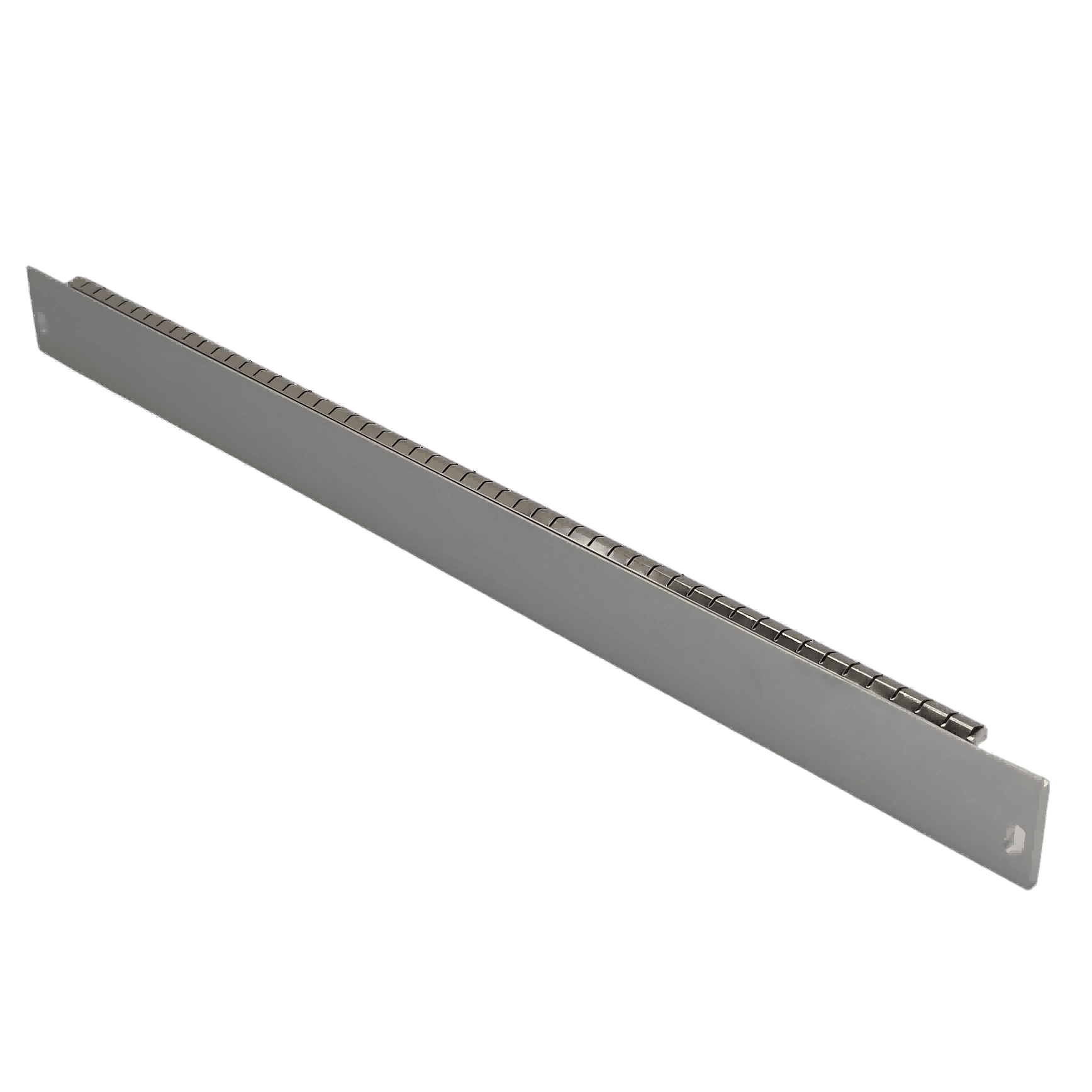

The 6U4HP chassis panel is a mechanical structural component conforming to the CPCI (CompactPCI) industrial computer standard. It is mainly used to fix and protect CPCI boards with 6U size and 4HP (horizontal spacing) width. Its core description is as follows:
1. Core definitions and specifications
“6U” means that the panel height meets the 6U standard, which is approximately 266.7 mm;”4HP” means that the panel width is 4 horizontal spacing units (1 HP =5.08 mm), which is approximately 20.32 mm. These panels are designed in strict compliance with relevant industry standards such as IEEE 1101.10 to ensure compatibility with standard CPCI chassis, backplanes and rails.
2.Main functions and characteristics
Board mounting and protection: As the front cover of the board, it is used to securely mount the CPCI board in the chassis slot and provide physical protection.
Heat dissipation assistance: Some panels use aluminum profiles with precision-machined heat sinks, which helps conduct heat away from the components on the board.
Interface and Labeling Area: Holes can be made on the panel to expose the front-panel interfaces of the board (such as serial ports and network ports), and information such as device model, indicator lights, and interface labels can be marked by silkscreen printing or affixing labels.
Ease of installation: Typically integrates or can be equipped with an auxiliary tool (plug-in handle) to facilitate the safe insertion and removal of cards within a compact chassis space.
3.Application Scenarios:
6U4HP panel is a key component of embedded computing system, widely used in:
Telecommunications equipment: such as signal processing, network switching equipment.
Industrial control and automation: used for test measurement, data acquisition, real-time control and other systems.
Defense and Aerospace: Similar applications exist in hardened systems such as VPX.
Medical systems, storage systems and security systems.
4. Customized services
This type of panel usually supports customization, including:
size and opening: customize hole position and window according to board layout.
Appearance treatment: according to the requirements of specific color paint or anodizing.
Logo and accessories: customized screen printing content, and can be selected for specific models of handles, pull aids and other accessories.
These products are supplied by the specialist ADWE and are designed to match the card structure (supporting 160mm front cards) of the target chassis (e.g. portable CPCI chassis or 19-inch rackmount chassis).
