Many models, support selection customization, please contact us.

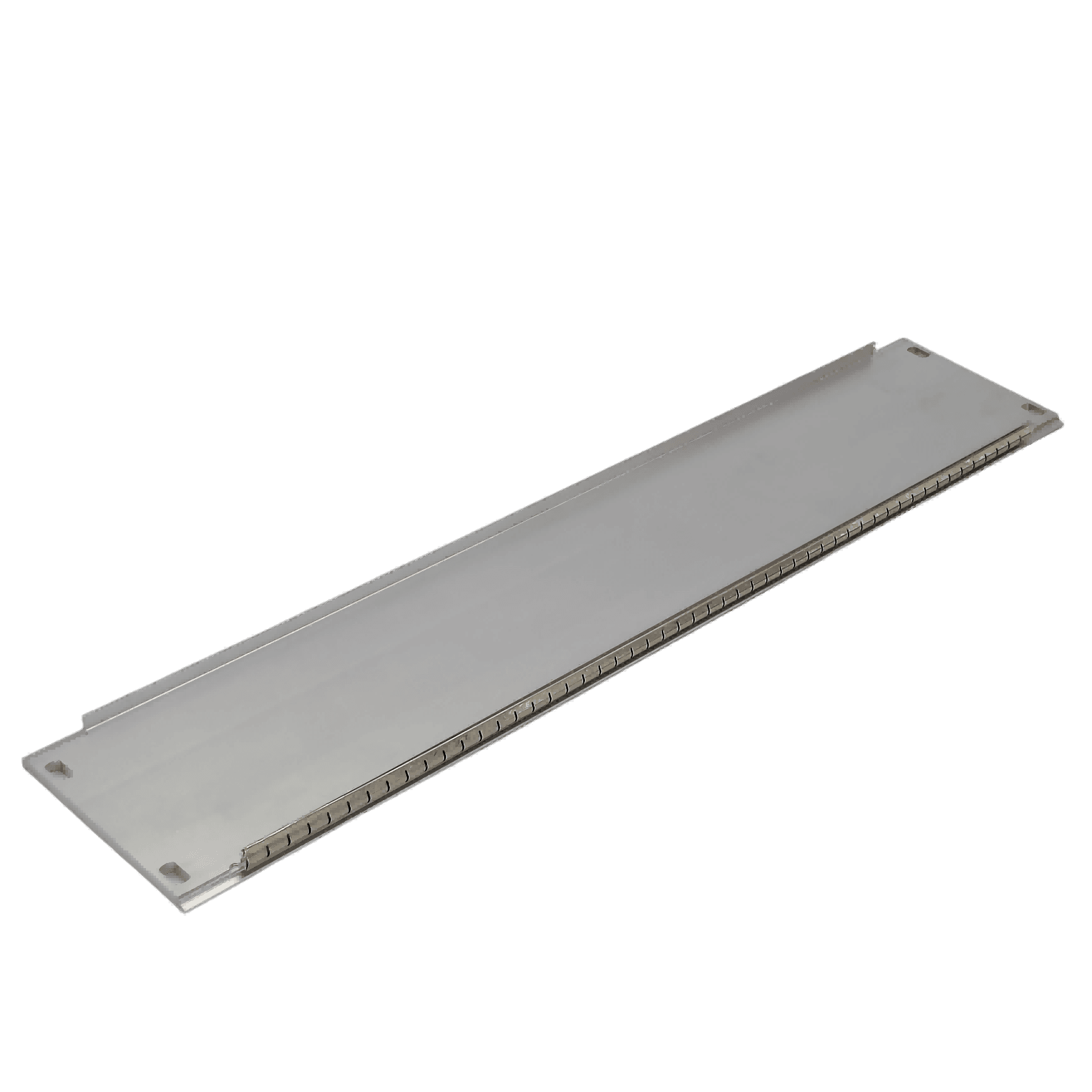

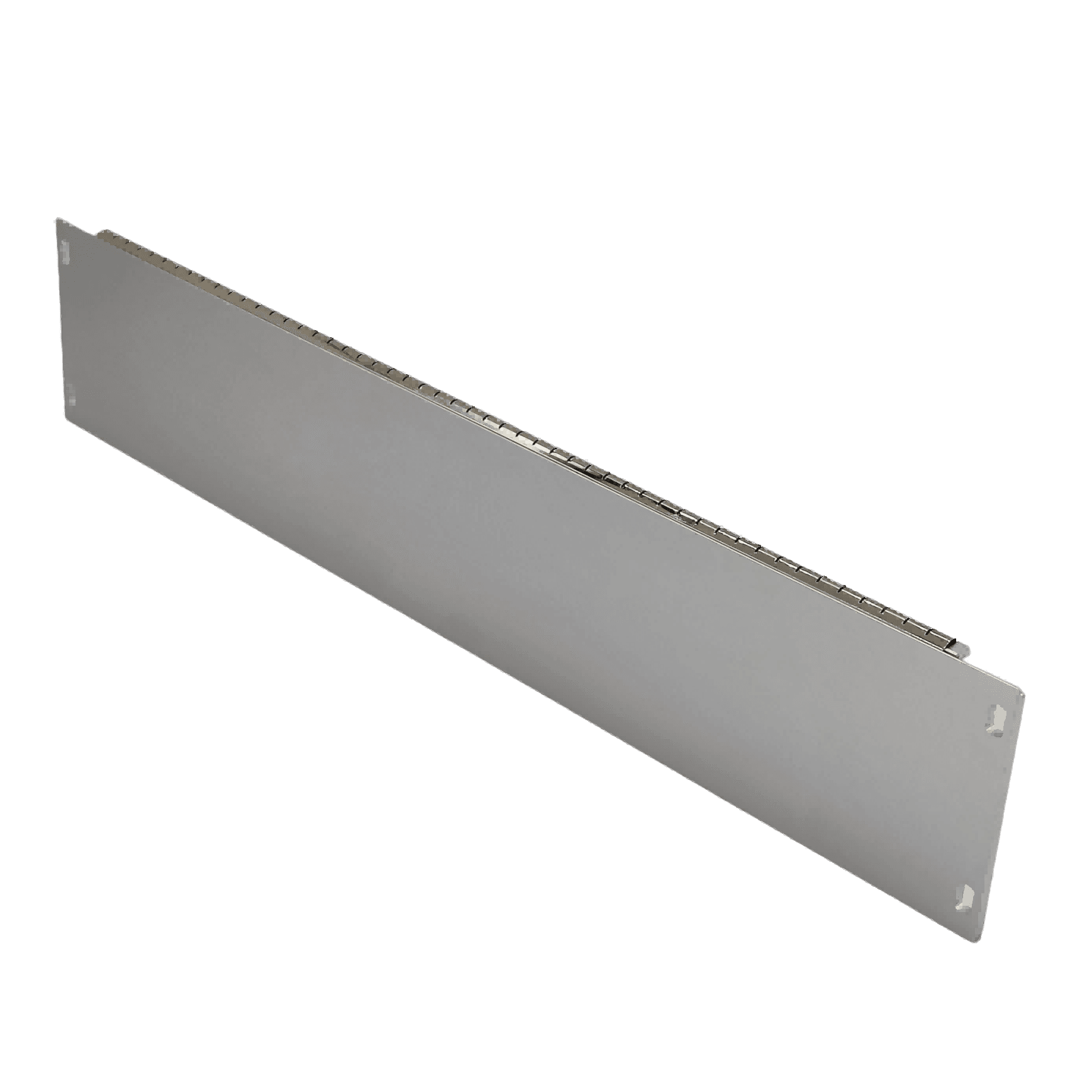

Detailed description of the 6U10HP panel, mainly applied to the modular synthesizer (Eurorack system) chassis design:
6U Height
Indicates that the vertical height of the panel is 6 vertical units (U).
1U ≈ 44.45mm (industry standard), so the total height of 6U ≈ 266.7mm (the actual panel gap is usually designed as 267mm).
Distinguish between:
3U: Mainstream Eurorack module standards (e.g. VCO, filters, etc.).
6U: Equivalent to the stacking height of two rows of 3U modules, which is common in large chassis (such as Doepfer A-100, etc.).
10HP Width
HP (Horizontal Pitch): Basic unit of module width, 1HP = 5.08mm.
10HP width = 10 × 5.08mm ≈ 50.8mm (actual panel width is usually about 51mm, including installation clearance).
Panel functions and uses
Blank Panel:
Used to fill the empty space of the cabinet, prevent dust from entering, and improve the aesthetics
Function panel:
Non-modular functions such as power switch, power socket, MIDI interface, audio input/output can be integrated
Application Scenario
Chassis expansion interface
Integrate external audio input/output, clock synchronization, etc. interfaces into the panel.
Power Management
Integrated power master switch, fuse slot, voltmeter.
Decoration and zoning
Divide the cabinet functional area with color panel to improve visual logic.
