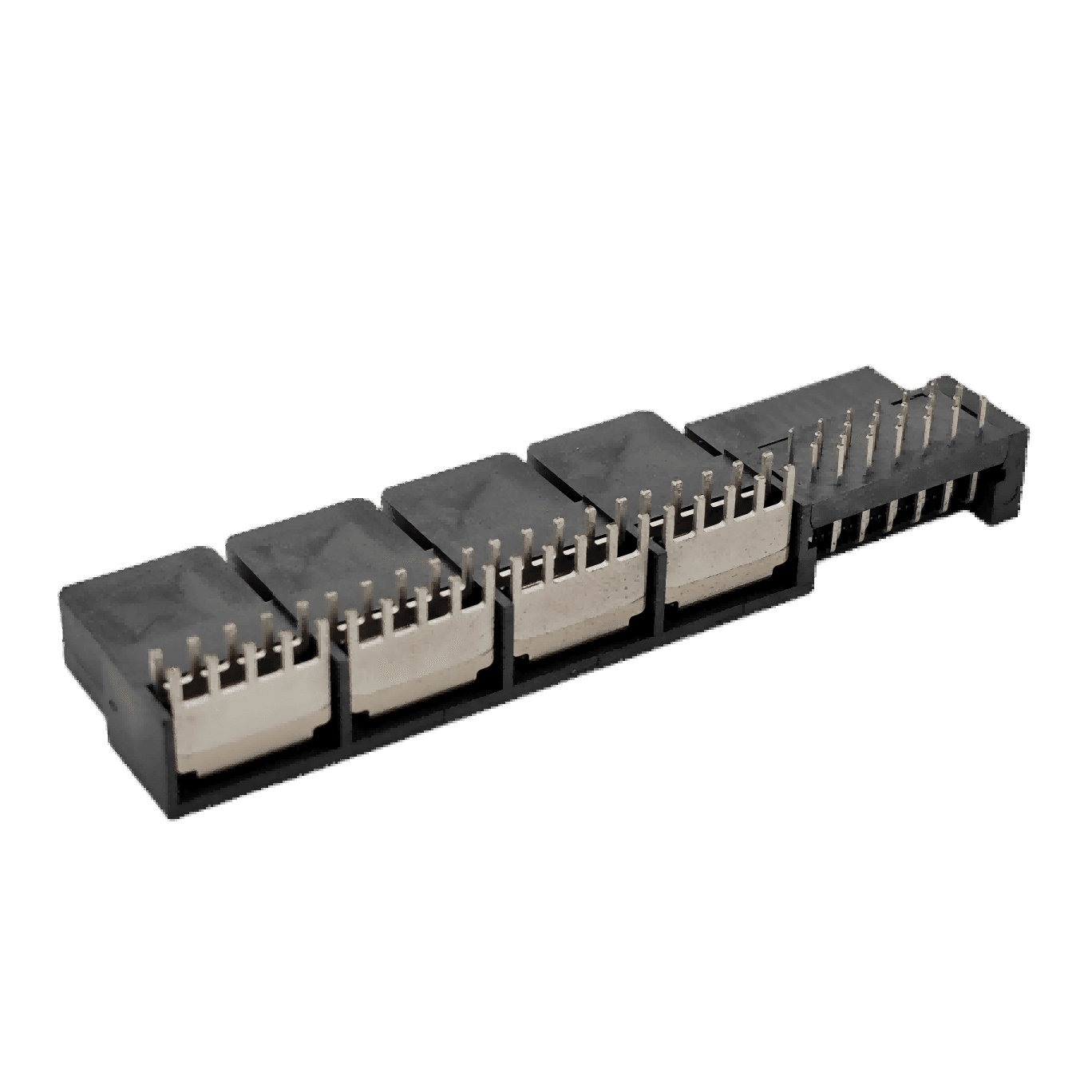

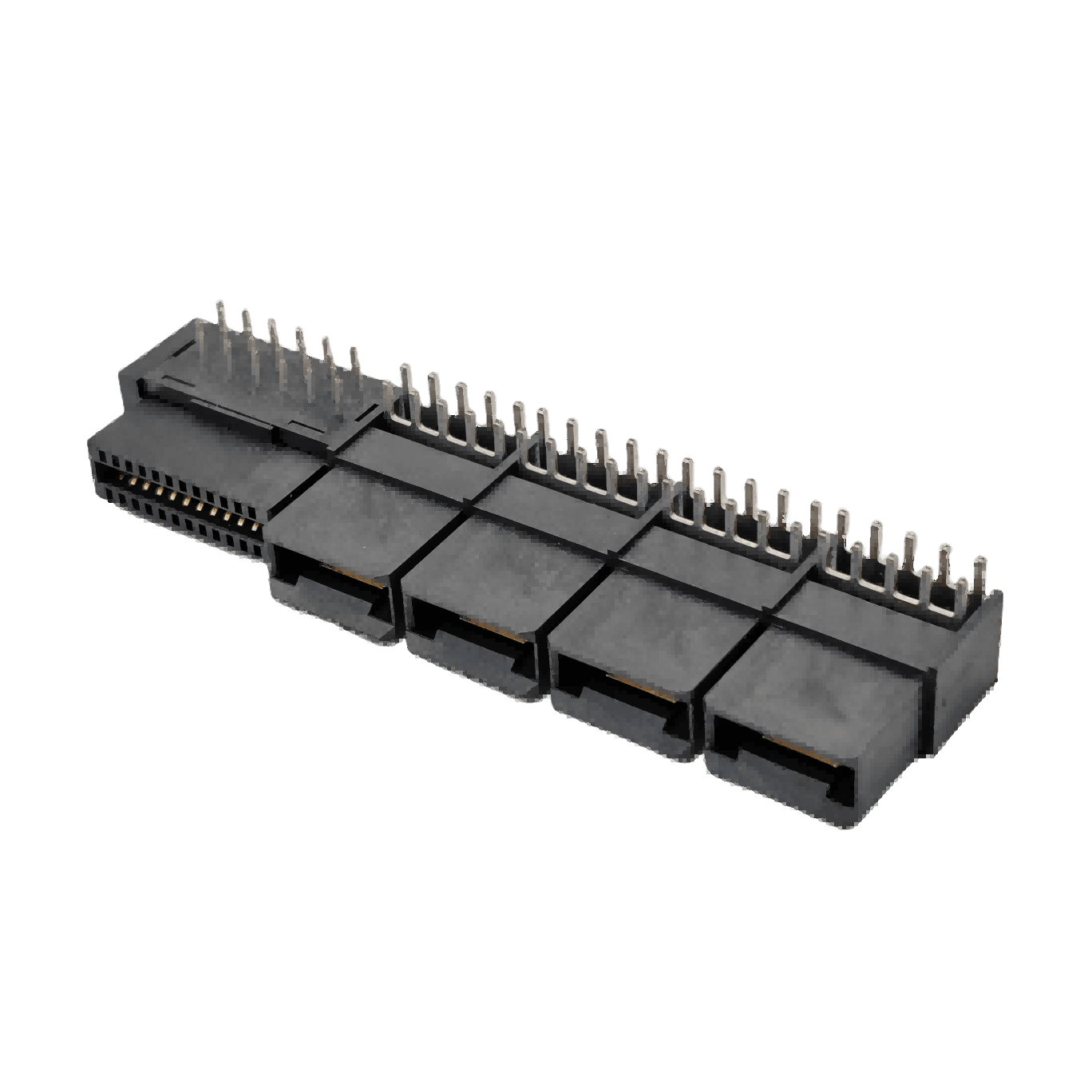

Current per inch up to 127.0A, low height LPH Power high current power signal connector with a flexible choice of plug models, can be connected with the traditional two-piece connection system, can also be connected with a socket and card or bus hybrid system.
LPH Power is a hybrid, high-current power signal connector system that can be used where traditional connectors cannot be used. Since the power blades are parallel to the PC board, the device is only 7.50mm high and occupies 53% or less of the space of traditional connectors, leaving room for the entire system and accelerating the air flow in the system space. Each enclosure compartment has two separate power blades that can be inserted at right angles, coplanar or perpendicular.
Main feature：
1.Low height, 7.50mm height makes the air flow in the system space faster, and the current per inch is 127.0A;
2.Socket LPH Power PCB plug is inserted, and it can also be inserted with industry standard 1.57mm (.062 “)PCB gold finger card;
3.Comply with hot plug current interrupt requirements;
4.Rugged signal and power terminals;
5.Each isolation room has two independent terminals;
6.Tested according to EIA-364-1000.01;
7.It is also possible to plug in and disconnect the power supply terminals after insertion.
